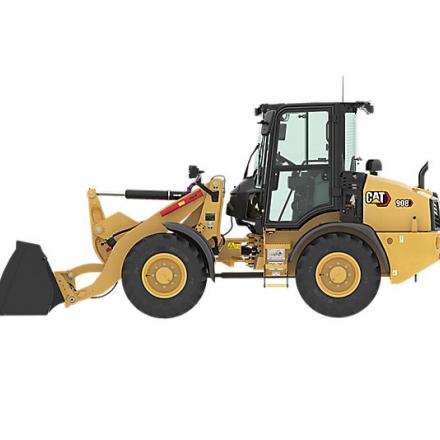

Wheel loaders 908
Request a QuoteKey Information
Maximum Gross Power
60 kW
Operating weight
6,632 kg
Bucket capacities
0.75 - 1.55 m³
Overview
Configured for Success
CAT® wheel loaders are the new benchmark in terms of productivity, energy efficiency, and driver comfort. The compact 908 Cat wheel loader is equipped with a high-torque C2.8 engine that works in conjunction with an intelligent hystat drivetrain to provide exceptional energy efficiency. The "Shift on the go" locking differentials and hydrostatic transmission ensure smooth and powerful operation while increasing machine cycle efficiency.
Advantages60% Increased Windshield Wiper Range
new cabin equipped with seat-mounted controls and an integrated screen
40 Km/h (25 Mph)
with "shift on the go" transmission
Customizable
for specific application configurations, including factory and aftermarket options
Key Features
- Configured to Succeed
- Enjoy Unlimited Comfort
- Powerful And Economical
- An Easy Job
- Customize Your Experience
- After-sales and Maintenance
Configured to Succeed
The CAT® wheel loaders are the new benchmark in terms of productivity, energy efficiency, and driver comfort. The compact 908 Cat wheel loader is equipped with a high-torque C2.8 engine that works in conjunction with an intelligent hystat drivetrain to provide exceptional energy efficiency. Depending on regional requirements, our engines produce emissions equivalent to those of Stage IIIA for the European Union (Tier 3 EPA for the United States) or those of Stage V for the European Union (Tier 4 Final EPA for the United States), thanks to a clean emissions module designed to self-manage so that you can focus on the task at hand.
Enjoy Unlimited Comfort
The brand new cabin is spacious, quiet, and comfortable. It also offers 360° visibility, allowing you to stay productive throughout the day. The seat-mounted controls include a multifunction manipulator for lifting and tilting functions, as well as a thumb-controlled speed range, a forward/neutral/reverse (FNR) switch, a differential lock switch, and a constant flow switch. An optional dedicated manipulator for a fourth function is also available. The digital display with touch keys allows for customization of settings to easily control the linkage and powertrain, further enhancing comfort and safety.
Powerful And Economical
The C2.8 Cat Engine is clean and quiet, while providing significant performance and robustness, thanks to a low speed and high torque design. Caterpillar's intelligent power management system monitors the operator's actions and available power to optimize machine operation. The "Shift on the go" locking differentials and hydrostatic transmission ensure smooth and powerful operation while increasing machine cycle efficiency. The new drivetrain mode (all-purpose) allows the machine to be operated with the right pedal via the screen. This allows the operator to better control the equipment's speed and ground speed compared to the control and slow approach pedal."""
An Easy Job
All-in-one manipulator to stay focused on work while optimizing the operation of hydromechanical equipment through a peak compensation electrohydraulic circuit. Optimized Z-linkage for high performance and great versatility, with buckets now bearing the DNA of large Cat loaders: curved side plates and flat stiffening tube for a parallel reference to the cutting edge.
Customize Your Experience
Connect with your machine by customizing the commands. The operator can adjust the responsiveness of the machine simply by pressing a button, depending on the equipment or application. Once customized, the settings can be locked with the "simplified mode" so that the machine is consistent and intuitive for each user. The machine's safety is enhanced by a standard key code or optional Bluetooth® technology."""
After-sales and Maintenance
A range of services as well as post-sales adaptations and upgrades are available to keep your machine running and configured for your application. Maintenance parts available, including a range of self-service options (SSO) and dealer kits. Integrated technology available to reduce maintenance costs.
Product Specifications for 908
- ENGINE
- Maximum Gross Power60 kW
- Engine ModelCat C2.8*
- Maximum Engine Speed2550 rpm
- Maximum Gross Power: Rated Engine Speed2400 rpm
- Maximum Gross Power: SAEJ199560 kW
- Maximum Gross Power: ISO1439655.4 kW
- Maximum Gross Power - ISO 14396 (metric)75.3 mhp
- Net Rated Power: Rated Engine Speed2400 rpm
- Net Rated Power: SAEJ134954.4 kW
- Net Rated Power - ISO 924953.8 kW
- Net Rated Power - 2400 rpm - ISO 9249 (metric)73.1 mhp
- Maximum Gross Torque: SAE J1995301 Nm
- Maximum Gross Torque: ISO14396300 Nm
- Maximum Net Torque: SAEJ1349296 Nm
- Maximum Net Torque - ISO 9249295 Nm
- Displacement2.8 L
- Bore90 mm
- Stroke110 mm
- Note*Equivalent to the American EPA Tier 3 and European Stage IIIA standards.
- Note (1)Maximum gross and net torque measured at 1600 rpm.
- Note (2)Rated power values are calculated under specified conditions by the indicated standard.
- Note (3)Advertised net power is the power available at the flywheel.
- WEIGHT
- Operating Weight6632 kg
- BUCKETS
- Bucket Capacities0.75-1.55 m³ (1.0-2.0 yd³)
- Bucket Capacities - General Purpose (GP)0.80-1.35 m³ (1.0-1.7 yd³)
- Bucket Capacities - Light Material1.25-1.55 m³ (1.6-2.0 yd³)
- All-Purpose Bucket0.75-1.1 m³ (1.0-1.4 yd³)
- NoteAll capacities apply to each model. When selecting a bucket, it is important to understand the material density and application to ensure that machine stability remains within specified load limits for the model and configuration.
- Note (1)Bucket capacities shown include bolt-on cutting edge as per ISO 7546 standard.
- FLUID CAPACITIES
- Fuel Tank90 L
- Cooling System12 L
- Engine Oil8.8 L
- Front Axle Differential8.8 L
- Rear Axle Differential8.8 L
- Hydraulic System - Including Tank70.5 L
- Hydraulic Tank44.6 L
- Transmission2.4 L
- NoteNo Diesel Exhaust Fluid (DEF) is required for this engine size.
- AXLES
- FrontFixed Locking Differential (Standard)
- RearFixed Locking Differential (Standard)
- NoteOscillation of ±11 degrees via the hitch between front and rear chassis.
- STEERING
- Articulation Steering Angle - Both Directions39°
- Maximum Flow - Steering Pump46.7 l/min
- Maximum Operating Pressure - Steering Pump23000 kPa
- Steering Cycle Time - Full Left to Full Right - Max Idle3 s
- Number of Steering Wheel Turns - Full Left to Full Right or Vice Versa3.25 turns or 4.00 turns
- TRANSMISSION
- Forward and Reverse - Low Range Speed#10 km/h
- Forward and Reverse - Speed Range 1*10 km/h
- Forward and Reverse - Speed Range 2** - High Speed18 km/h
- Forward and Reverse - Speed Range 2* - Standard19 km/h
- Forward and Reverse - Speed Range 3***40 km/h
- Note#Default setting. Can be adjusted to any speed up to 19 km/h (12 mph).
- Note (1)*Slow approach mode not available at this speed or higher speeds.
- Note (2)**Maximum speed depends on model and configuration (standard or high-speed transmission).
- Note (3)***Reverse can reach 30 km/h (19 mph).
- TIRES
- Tire Size - Standard*405/70 R18 SPT9
- Tire Size - Optional405/70 R20 Powerloads
- Tire Size - Optional (1)400/70 R20 XMCL/Bibload
- Tire Size - Optional (2)360/80 R20 TRI 2
- Tire Size - Optional (3)40X14-20 TL, SM/TR
- Note*This tire has been used for all dimension, stability, and performance data.
- Note (1)Other tire types are available. Contact your Cat dealer for additional information.
- Note (2)In certain applications, loader production capacities may exceed tire capacities (given in t-km/h [t-mph] index).
- Note (3)Prior to selecting a tire type, Caterpillar recommends consulting with the tire supplier for all usage conditions.
- CAB
- ROPSISO 3471:2008
- FOPSISO 3449:2005 Level II
- Note (1)Rollover Protective Structure (ROPS) and Falling Object Protective Structure (FOPS) available worldwide. ROPS not available in EU.
- Note (2)Operator's declared dynamic sound pressure level is compliant with ISO6396:2008*. When cab is properly installed and maintained, it is 71 dB(A).
- Note (3)*Measurements were conducted with doors and cab windows closed.
- Note (4)Sound power level shown on plate in European market configurations (CE Mark) is measured according to procedures and test conditions specified in directive 2000/14/EC and is 101 dB(A). 99 dB(A) Low sound level - Available as option.
- LOADER HYDRAULIC SYSTEM
- Main Relief - 1st Auxiliary (3rd Function)23500 kPa
- Main Relief - 1st Auxiliary (3rd Function) - Standard Flow90 l/min
- Main Relief - 1st Auxiliary (3rd Function) - High Flow125 l/min
- Main Relief - 2nd Auxiliary (4th Function)23500 kPa
- Main Relief - 2nd Auxiliary (4th Function) - Flow45 l/min
- Hydraulic Cycle Time - Raise2.5 s
- Hydraulic Cycle Time - Dump1.8 s
- Hydraulic Cycle Time - Lower5.8 s
- Hydraulic Cycle Time - Float3.6 s
- Note*Adjustable from 20 to 100% of maximum flow through display.
- DIMENSIONS - WITH HPL-V COUPLER - APPROXIMATE VALUE#
- Height - Ground to Cab**2670 mm
- Height - Ground to Beacon**2853 mm
- Height - Ground to Axle Center**519 mm
- Ground Clearance**320 mm
- Overall Length*5549 mm
- Rear Axle to Bumper Length1391 mm
- Hitch to Front Axle Length1085 mm
- Wheelbase Length2170 mm
- Dump Height -
- 45°2822 mm
- Dump Clearance - 45°2480 mm
- Bucket Pin Height - Maximum3759 mm
- Note#Weight shown is based on a machine configuration with Michelin 405/70 R18 tires, full fluids, operator, ROPS/FOPS cab, and general purpose bucket.
- Note (1)*Includes bucket hinge pin and coupler (if equipped).
- Note (2)**Weight based on a machine configuration with Michelin 405/70 R18 tires, full fluids, operator, ROPS/FOPS cab, and general purpose bucket.
- Note (3)Dimensions are approximate and based on machine equipped with Michelin 405/70 R18 tires. When tires are changed to the optional tire sizes, the dimensions will vary.
- Note (4)The machine's overall height with a standard bucket installed is 3711 mm.
- Note (5)The machine's overall height with the compact design bucket is 3645 mm.
- Note (6)The machine's overall height with the multi-purpose bucket is 3749 mm.
- ELECTRICAL SYSTEM
- Alternator - Charging System14 V/120 A
- Battery - Voltage12 V
- Battery - Cold Cranking Amps850 A
- NoteAdditional alternator options are available to meet specific applications. Cat batteries are standard for all machines.
- LIGHTS
- Working Lights - ROPS/FOPSHalogen
- Stop and Tail Lights - ROPS/FOPSHalogen
- Backup Lights - ROPS/FOSHalogen
- Turn Indicator Lights - ROPS/FOPSHalogen
- NoteAll lights are LED except for the above mentioned.
Standard Equipment for 908
-
POWERTRAIN
- Compliant with Emission Standards, two options (based on regional regulations)
- EPA Tier 4 Final and EU Stage V
- Equivalent to EPA Tier 3 and EU Stage IIIA
- Cat C2.8 Engine
- Diesel Particulate Filter (Lifetime Mounted) or Silencer (based on regional regulations)
- Fuel, Diesel, Low or Ultra-Low Sulfur (based on regional regulations)
- Two-Speed Hydrostatic Transmission, with Creep Mode, "Shift on the Go"
- Powertrain Mode, Hystat
- Air Filter, Dual-Stage, with Audible/Visual Signals on Cabin Display
- Heavy-Duty Axles, Chassis-Mounted with External Planetary Reductions
- Closed Circuit Breather
- Long-Life Coolant, -36°C (-33°F)
- Sealed Driveline, Lifetime Lubricated, Universal Joints
- Engine Auto Idle Shutdown, Hibernate Mode
- Engine Oil, Eco-Drain Valve and Tube
- Primary Fuel Pump (Manual)/Water Separator/Drain
-
HYDRAULIC SYSTEM
- Continuously Variable Hystat Displacement Pump
- Load Sensing Equipment Valve
- Single Lever Joystick, Single Auxiliary Thumbwheel
- Multi-Function Lift and Tilt with Loader Arm Float
- Single-Drive Motor with Independent Steering and Equipment Pumps
-
ELECTRICAL EQUIPMENT
- Alternator, 100A, Sealed
- Heavy-Duty Battery, 12V, 90Ah and 1,000 CCA
- Battery Disconnect Switch
- Cabin-Mounted Fuse Panel
- LED Tail Lights and Turn Signals
- Front Road Travel Lights, Halogen
- Electronic Technician (ET™) Service Tool
- Product Link™
-
DRIVER'S COMPARTMENT
- ROPS/FOPS Certified Canopy/Cabin
- 12V Power Outlets, Interior/Exterior
- High-Lift Pedals, Brake/Creep, Accelerator
- Parking Brake Lever
- Cup Holders (2)
- CB Radio Mount, Phone Mount
- Interior (Left and Right) Door Release
- Large Coat and Hard Hat Hooks
- Heavy-Duty Floor Mat, Easy to Clean
- External Mirrors (2) Retractable, (1) Internal
- Isolated Operator's Station
- Rotary Dial on Steering Wheel, Center Horn
- Orange Retractable Seat Belt, 51mm (2 in)
- Personal Storage (Drawers [3], Seat Back Pouch)
- Tilt Steering Column
- Multi-Function Controls on Steering Column: Lights, Wipers, Auto-Cancel Turn Signals
- Quick Coupler Switch, In Cabin
- Analogue and Digital Display
- Gauges (2), Hydraulic Oil, Engine Coolant
- Digital Touchpad - Fuel Level, RPM Range, Speed Indicator, Maintenance Timer, Service Info, Hydraulic Circuit and Powertrain Performance/Aggressiveness Settings, Security Password (multiple languages)
- Seat-Mounted Standard Multi-Function Joystick
- FNR, Auxiliary Thumbwheel, Speed Range Selector, Continuous Flow, Differential Lock, Horn
- Padded Right-Side Armrest, Vertically Adjustable
- Seat, Manual Height Adjustment, (Cabin) Fabric and Adjustable Left Armrest, (Canopy) Vinyl
- Cabin
- Doors (2), Fixed Windows
- Wipers, Front and Rear, Full Front Coverage
- Windshield, One-Piece Front
- Rear Window, Defroster
- Radio Ready, Speakers and Wiring
- Vents (4) Louvered, (7) Blinker
- Heating, Mechanical Control Unit
- Solid Sun Visor, Wide Front
- Interior Lighting (Incandescent)
-
OTHER
- Front and Rear Fenders
- Ground-Level, Easy-Access Daily Service Points
- Loader Arm Safety Reinforcement
- Lockable Main and Side Engine Hoods
- Lockable Fuel Cap, HVAC Filters, Nose
- Machine Tie-Down/Lifting Points
- Electro-Coat Primer, Gloss Finish Paint
- Hitch with Pin
- Periodic Oil Sampling (S·O·S℠) Ports for Engine and Hydraulic Oil
Available Options for 908
-
POWERTRAIN
- Long-Life Coolant, Antifreeze, -50°C (-58°F)
- Cold Start, Jacket Water Heater, Bypass Valve
- Slow Speed and Accelerator Lock Features
- Primary Electric Fuel Priming Pump (as per regional regulations)
- Hydrostatic Transmission 40 km/h (25 mph), 3-speed, Shift on the Go, Assisted Auxiliary Steering and Braking
- All-Purpose Powertrain Mode (including keypad)
-
ELECTRICAL EQUIPMENT
- Multiple Lighting Sets; Front, Rear, Engine Compartment (LED or HAL)
- Push Button Start
- Work Tool Wiring Harness, (3) Cabin-Mounted Switches
-
HYDRAULIC SYSTEM
- Auxiliary Flow, Single Standard Valve (3), Single High Flow Valve (3), Double High Flow Valve (4)
- Caterpillar Bio HYDO Advanced Hydraulic Oil
- Pressure and Return Connections to Tank
- Anticavitation or Load Check Valve (as per regional regulations)
- Reverse Direction Cooling Fan
- Quick Disconnect Auxiliary Hydraulic Lines
-
DRIVER'S COMPARTMENT
- Automatic Temperature Control (ATC) Air Conditioning
- Doors, Sliding Windows (Left and Right)
- Interior Lighting, Activated upon Door Opening
- FNR Joystick, Dual-Auxiliary Thumbwheels, Differential Lock, Horn
- Seat-Mounted Joystick, Multi-Function
- Electronically Adjustable Mirrors (2), Heated, Lower Parabolic Section
- Spring-Mounted Phone Holder
- Radio, FM or Digital Audio Broadcasting
- Multiple Seat Belt Options
- Seat Sets; Deluxe or Premium
- Secondary Display, Front or Rear Vision Camera
- Touchpad Keypad Options, 8 or 16 Buttons
- Storage, Lockable Toolbox or Refrigerated Lockable Box
- Rear Perforated Sun Visor
- USB Ports (2), Interior
-
OTHER
- Vertical (SSL), Horizontal (HPL-V, HPL-A) Attachments
- Rotation Sensors (Damping, Disengagement, Parallelism)
Media Gallery
Discover Similar Equipment
Wheel loaders
924K
Maximum Gross Power
105 kW
Operating weight
11,795 kg
Bucket capacities
1.7 - 5.0 m³
ExploreWheel loaders
950 GC
Net Power - ISO 9249
151 kW
Bucket capacities
2.5 - 4.4 m³
Engine model
C7.1 CAT®
ExploreWheel loaders
930K
Maximum Gross Power
119 kW
Operating weight
13,130 kg
Bucket capacities
2.1 - 5.0 m³
ExploreWheel loaders
982
Net Power @ 1,800 rpm - ISO 9249:2007, SAE J1349:2011
282 kW
Operating weight
35,510 kg
Bucket capacity
4.8 - 17.2 m³
Explore
