Underground hard rock AD30
Request a QuoteKey Information
Engine Model
C15 CAT®
Engine power - Tier 3 engine - ISO 14396:2002
299 kW
Nominal payload
30,000 kg
Overview
A Compact Beast of Burden

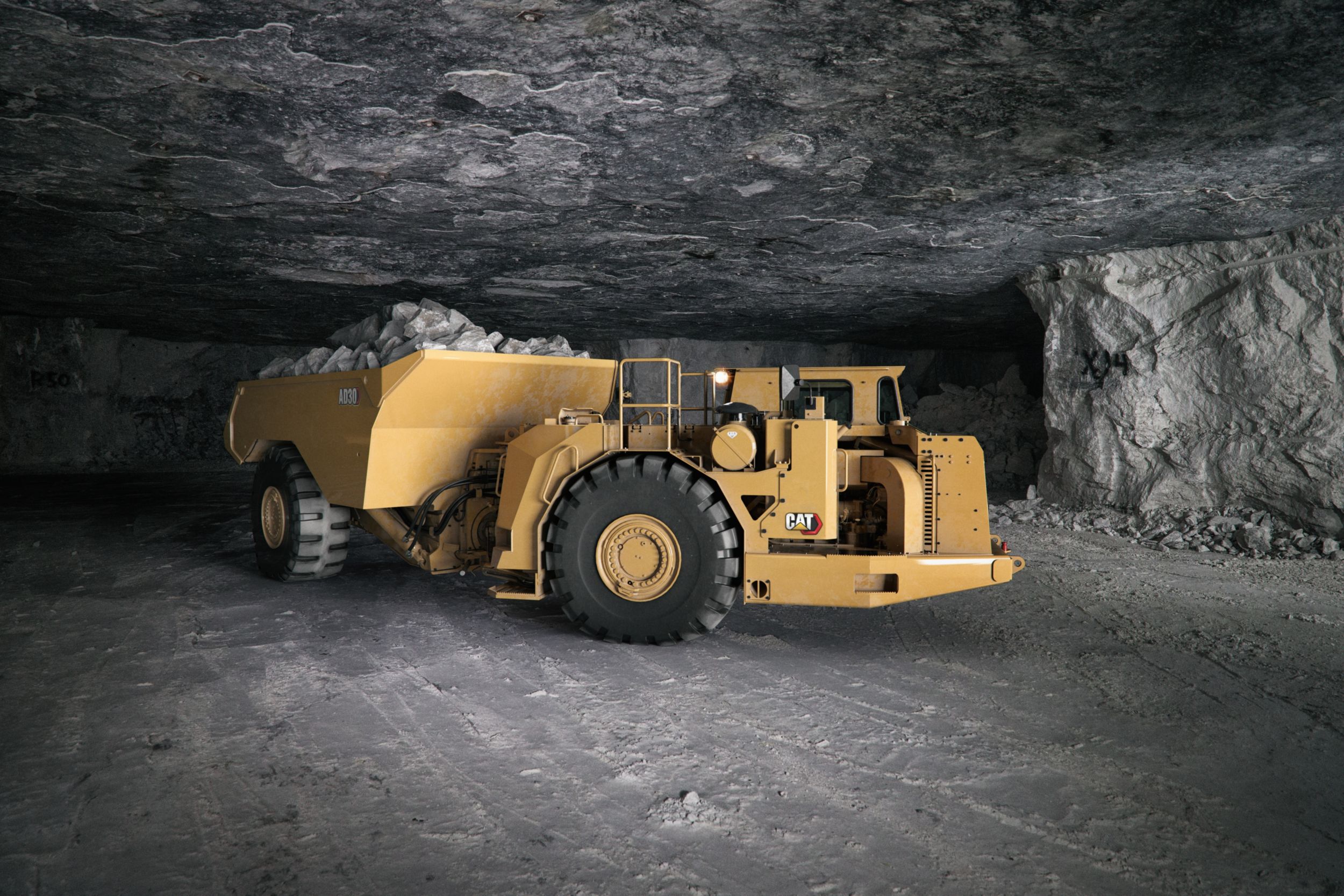

The AD30 CAT® underground truck is a medium to small-sized transport vehicle perfectly suited for the Cat R1600H underground loader. Designed for performance, it is powered by the Cat C15 engine and offers fast cycle times and maximum efficiency. With two types of buckets in multiple sizes, you can choose the bucket that is suitable for your application to optimize efficiency. The ergonomic cabin ensures the safety and comfort of the operator. Its durability and ease of maintenance guarantee a long lifespan while reducing operating costs.
Advantages
Control and Driving Comfort
Ergonomic design to promote operator comfort, machine control, and productivity throughout the workday
The Perfect Bucket for Your Mission
Two types of buckets in multiple sizes that adapt to the application for improved efficiency
Fast Cycle Times
Thanks to a powerful engine, automatic retarder, and single-stage bucket cylinders for shorter emptying times
Key Features
- Security
- Mastering and Driving Comfort
- Performance and Productivity
- Power and Efficiency
- Dumpsters
- Easy Maintenance
- Intelligent electronic systems
Security
Driver presence detection system, which protects the machine and the driver against uncontrolled movements of the machine, with hydraulic circuit neutralization and door sensor. Safer access and exit, thanks to non-slip surfaces on the platform, handrails on the platform, 3-point access to the cabin and machine. The ROPS cabin is elastically mounted to the chassis to isolate the driver from vibrations. Four-wheel braking system, oil-cooled, which ensures excellent vehicle control, with maneuvering brake operated by hydraulic pressure modulation, spring-clamping parking function and hydraulic release to ensure braking in the event of a hydraulic pressure loss incident. Safer maintenance thanks to bin retention segments, firewall partition and protection against thermal emissions, hydraulic articulation hoses equipped with splash protection sleeves, tailgate retention segments (ejector bin), hot and cold sides of the engine.
Mastering and Driving Comfort
The location of controls, levers, switches, and instruments has been designed to optimize the driver's productivity and reduce fatigue. The optional soundproof ROPS cabin provides a quiet, safe, comfortable, and air-conditioned working environment with fresh, pressurized, and temperature-regulated air circulation. The fully adjustable ergonomic suspension seat features thick cushions that reduce pressure on the lower back and thighs, and retractable seat belts that provide comfortable and secure restraint. The comfortable steering wheel with tilt steering allows for a comfortable driving position, secure grip, and better control. The oil-cooled four-wheel braking system ensures excellent vehicle control. The integrated circuit combines maneuvering brake, auxiliary brake, parking brake, and retarder functions in a robust circuit for optimal braking efficiency.
Performance and Productivity
Payload weighing system for dump trucks, which automatically records load cycle information when the load is dumped; drivers thus have real-time loading data that they can sort and download. The Automatic Retarder Control (ARC) electronically controls deceleration on slopes to maintain optimal engine speeds for faster downhill travel and increased productivity. Single-stage dump cylinders ensure fast dumping cycles (16 seconds for lifting and 21 seconds for lowering).
Power and Efficiency
C15 Cat engine, which offers unmatched overload strength during digging, moving, and traversing steep slopes. The torque reserve adapts to gear shift points to ensure maximum efficiency and fast cycle times. The lock-up torque converter combines maximum effort at the rim with the torque converter take-up, with the efficiency and performance of direct drive when the lock-up clutch is engaged. The high-pressure direct injection fuel system, equipped with electronically controlled mechanical unit injectors (MEUI™), electronically monitors driver requests and sensor inputs to optimize engine performance and fuel combustion. The Cat 4-speed Powershift transmission, combined with the Cat C15 diesel engine, delivers constant power over a wide range of operating speeds.
Dumpsters
Cat bins are designed for optimal power, capacity, and longevity, thanks to improved design and the use of Hardox steel, reducing cost per tonne and increasing service life. Designed and adapted to the machine's integrated chassis, ensuring reliability, strength, and superior lifespan. Two types of Cat bins, tipping bins and ejector bins, allow for the most efficient transport system at the lowest cost per tonne. The ejector bin can be easily removed and a tipping bin can be installed for added versatility.
Easy Maintenance
Access from the ground to all tanks, filters, lubrication points, and compartment drains; remote-mounted fuel filters for easier maintenance; liquid level gauges. Radial seal air filters that are easy to replace, reducing the time required for air filter maintenance. Electrical connectors that are dust and moisture resistant, harnesses covered by protection, and wires that are color-coded and numbered for easy diagnosis and repairs. ET Cat electronic device, which allows for quick electronic diagnostics of machine performance and provides essential diagnostic data for efficient maintenance and repairs. Cat Electronic Monitoring System (EMS), which provides continuous access to important machine data so that it can continue to operate at high levels.
Intelligent electronic systems
Smooth shifting and extended component lifespan, with automatic control of the accelerator, allowing for regulation of the engine speed, torque converter lockup, and transmission clutch engagement. Reduced fuel consumption, noise levels, and potential increase in engine lifespan, thanks to the economical shifting mode. Less machine damage due to management of direction changes, which regulates the engine speed to avoid high-speed direction changes. Additionally, the shift limiter with raised bucket prevents the transmission from exceeding a preset gear ratio until the bucket is fully lowered. Protection against engine overspeed with the automatic retarder control, which applies the brakes when a dangerous engine speed is reached while the driver is pressing the accelerator pedal.
Product Specifications for AD30
- ENGINE
- Engine ModelC15 CAT®
- Engine Power - Tier 3 - ISO 14396:2002299 kW
- Engine Power - RV - ISO 14396:2002299 kW
- Bore137.2 mm
- Stroke171.5 mm
- Displacement15.2 l
- Note (1)Rated power applies at a rated speed of 1800 rpm when tested under the conditions for the specified standard.
- Note (2)All ratings are based on ISO/TR14396:2002, with normal air inlet conditions with total barometric pressure of 100 kPa (29.5 in Hg), vapor pressure of 1 kPa (0.295 in Hg), and 25°C (77°F) inlet air temperature. Performance measured using fuels to EPA emissions standard in effect for the United States (40 CFR Part 1065) and European Union (Directive 97/68/EC), fuel density of 0.845-0.850 kg/L (7.05-7.09 lb/gal) at 15°C (59°F), and fuel inlet temperature of 40°C (104°F).
- Note (3)Derating occurs above 2743 m (8999 ft) altitude.
- Note (4)Available ventilation reduction system as an option.
- An engine conforming to emissions equivalent to the U.S. Tier 3 and European Stage IIIA emissions standards is also available as an option.
- Note (5)An engine conforming to emissions equivalent to U.S. Tier 3 and European Stage IIIA emissions standards is also available as an option.
- OPERATING CHARACTERISTICS
- Nominal Payload30,000 kg
- Machine Gross Weight60,000 kg
- Bucket Capacities11.3-17.5 m³ (14.8-22.9 yd³)
- WEIGHT
- Empty28,870 kg
- Empty - Front Axle19,479 kg
- Empty - Rear Axle9,391 kg
- Loaded60,000 kg
- Loaded - Front Axle26,513 kg
- Loaded - Rear Axle33,487 kg
- WEIGHT DISTRIBUTION
- Empty - Front Axle67.50%
- Empty - Rear Axle32.50%
- Loaded - Front Axle44.20%
- Loaded - Rear Axle55.80%
- TRANSMISSION
- Forward - 16.3 km/h
- Forward - 211.3 km/h
- Forward - 320.8 km/h
- Forward - 436.7 km/h
- Reverse - 17.1 km/h
- NoteMaximum travel speeds with standard 26.5 × R25 tires.
- REDUCERS
- Differential Ratio3.38:1
- Reducer Ratios4.76:1
- Total Reduction Ratio16.13:1
- NoteFloating axles.
- DUMP SYSTEM
- Lifting10.5 s
- Dumping11.2 s
- Total Cycle Time21.7 s
- BUCKET CAPACITIES
- Bucket 111.3 m³
- Bucket 2 - Standard bucket14.4 m³
- Bucket 317.5 m³
- Wide Bucket16.8 m³
- Ejector Bucket (1)15.2 m³
- Ejector Bucket (2)16.8 m³
- NoteCapacity at SAE 2:1 heaped.
- TURNING DIMENSIONS
- Outside Clearance Radius8571 mm
- Inside Clearance Radius5030 mm
- Articulation Angle42.5 °
- Chassis Oscillation10 degrees
- MAINTENANCE CAPACITIES
- Engine Oil with Filter34 l
- Transmission67 l
- Hydraulic Tank145 l
- Cooling System74 l
- Front Differential and Reducers56 l
- Rear Differential and Reducers56 l
- Fuel Tank410 l
- TIRES
- Tire Size26.5 × R25
- STANDARDS
- StandardsROPS/FOPS Certified Cab
Standard Equipment for AD30
-
TIRES, RIMS, AND WHEELS
- Tires must be selected in the mandatory equipment section. Choose from the following:
- Tire, 26.5 × 25 VSNT Bridgestone
- Tire, 26.5 × 25 VSDL Bridgestone
- Wheels (set of four) - five pieces, tubeless
-
ELECTRICAL EQUIPMENT
- 12V Power Supply in Cabin
- Reverse Alarm
- Alternator, 95A
- Ground-Level Battery Disconnect
- Circuit Breaker, 80A
- Corrosion Protection Coating
- Diagnostic Connector
- Two-Post Ground-Level Battery Disconnect
- Headlights:
- Headlights with Dimmer
- Stop and Tail Lights
- Reverse Lights, Auto Engage on Reverse Gear
- Cab-Mounted Rear Floodlight
- Low-Maintenance Batteries
- Emergency Start Receptacle
- Ground-Level Shutdown Switch
- Starting and Charging Circuit
-
DRIVER'S COMPARTMENT
- ROPS/FOPS Certified Cab
- Open Operator Station with ROPS/FOPS Frame
- Caterpillar Electronic Monitoring System (CEMS), Dashboards
- Operator Presence System
- Automatic Brake Application (ABA)
- Electric Horns
- Indicators:
- Engine Coolant Temperature
- Transmission Coolant Temperature
- Hydraulic Oil Temperature
- Fuel Level
- Speedometer
- Tachometer
- Indicator Lights:
- Warning Light
- Raise Box Warning
- High Beam
- Residual Brake Pressure Warning
- Retarder Application
- Turn Signals
- Low Hydraulic Level Warning
- Mirrors
- Suspension Seat with Retractable Seat Belt
- Instructor/Passenger Seat with Seat Belt
- Adjustable Tilt/Telescopic Steering Wheel
-
POWERTRAIN
- Axle Configuration:
- Standard Width, Front - Rear
- Automatic Brake Retarder Control
- Brakes:
- Disc Brakes on All Wheels
- Oil-Cooled
- Oil-Cooled Multidisc (SAFR™)
- Automatic Accelerator Control Shifting
- Electric Fuel Priming Pump
- Engine:
- C15 Cat Six-Cylinder Diesel
- Air-to-Air Aftercooler (ATAAC)
- Turbocharger Compartment Protection, Exhaust
- Four-Wheel Drive
- Programmable Gear Lockup with Raised Stall
- Programmable Ground Speed Limiting
- Extended Life Coolant
- Four-Wheel Parking Brake
- Engine Air Intake Precleaner
- Manual Radiator Shutter Override
- Crossflow Radiator
- Planetary Powershift Automatic Transmission (4F/1R)
- Torque Converter with Lock-Up Clutch
-
OTHER STANDARD EQUIPMENT
- Oil Sampling Adapters
- Upshift Alarm
- Dump Body and Ejector:
- Dump Capacity (14.4 m3 / 18.8 yd3)
- Manual Radiator Shutter Override
- Purifier Group/Catalytic Muffler
- Centralized Grease Fittings
- Fenders:
- Front, Rear Mudflaps
- Fire Extinguisher
- Manual Fuel Shut-Off Valve
- Front Rubber Bumper
- Grab Bar (Upper Platform Access)
- Handrails
- Oscillating and Articulating Hitch
- Lifting Eyes, Frame
- Lubrication System:
- Centralized for Dump Body
- Operation and Maintenance Manual: English and Other Local Languages as Applicable
- Periodic Oil Sampling Port (S·O·SSM):
- Coolant
- Engine Oil
- Hydraulic Oil
- Transmission Oil
- Spill Guard, Front (For Dump Body)
- Swing Radiator Grill
- Tow Hooks, Front and Rear
Available Options for AD30
-
POWERTRAIN
- Drive Axle Configuration:
- Wide Front-End Rear Dumping
- Brake Gauges
- Engine Options:
- Engine with Ventilation Reduction (VR)
- Tier 3 Equivalent
- Aftertreatment Options (to be used with VR Engine only): Diesel Particulate Filter (DPF) (through) Filter
- Quick Fill Device:
- - Coolant
- - Engine Oil
- - Fuel (Dual Tank)
- - Hydraulic Oil
- - Transmission Oil
- Parking Brake Switch Engagement - Push to Apply - Pull to Apply
- Auxiliary Steering Circuit
-
ELECTRICAL EQUIPMENT
- Battery Disconnect:
- Ground-Level Isolation, Cabin Isolation Switch
- Ground-Level Isolation, Engine Stop Switch
- Ground-Level Isolation, Cabin Isolation and Engine Stop Switch
- Headlights:
- Dimming Headlights, Diodes
- Reverse Lights, Automatically Upon Shifting to Reverse Gear, Diodes
- Cab-Mounted Rear Spotlight, Diodes
-
DRIVER'S COMPARTMENT
- Closed ROPS/FOPS Frame Driver Compartment:
- Air Conditioning
- Cabin Pressurization and Filter
- Ceiling Light
- Heating
- Compartment Pre-Wired for Radio and Speakers
- Sun Visor
- Sliding Cabin Door Window
- Seat:
- Cat Comfort TLV2 Suspension Vinyl Seat
- T-Shape Mechanical Suspension Seat
- Seat Cover:
- T-Shape and TLV2 Comfort Cat Seat Covers
- Passenger Seat Cover
-
TECHNOLOGY
- 3rd Generation Vital Information Management System (VIMS)
- Payload:
- Articulated Truck Payload Weighing System (TPMS)
- Remote Display for TPMS
-
TIRES, RIMS, AND WHEELS
- Rim Identification Number
- Spare, Tubeless
-
OTHER OPTIONS
- Dump Body and Ejector:
- Dump, (11.3 m3/14.8 yd3)
- Dump, (16.8 m3/21.9 yd3) (Wide Body Configuration)
- Dump, (17.5 m3/22.9 yd3)
- Ejector, (15.2 m3/19.9 yd3)
- Ejector, (16.8 m3/21.9 yd3)
- Body Reinforcements, Impact-Resistant or Wear-Resistant
- Camera - Rear-Facing Color
- Shipping Anti-Vandalism Hood
- Fenders:
- Front Wide Body, Front Mudflaps
- Fire Suppression Device:
- Ansul Dry Chemical
- Water-Based Foam
- Fluids:
- Polar Climate Fuel
- Polar Climate Coolant
- Lubrication System:
- Automatic Ejector or Dump Body
- Centralized Ejector
- Mining Transfer
- Reflective Tapes
- Maintenance Tools
