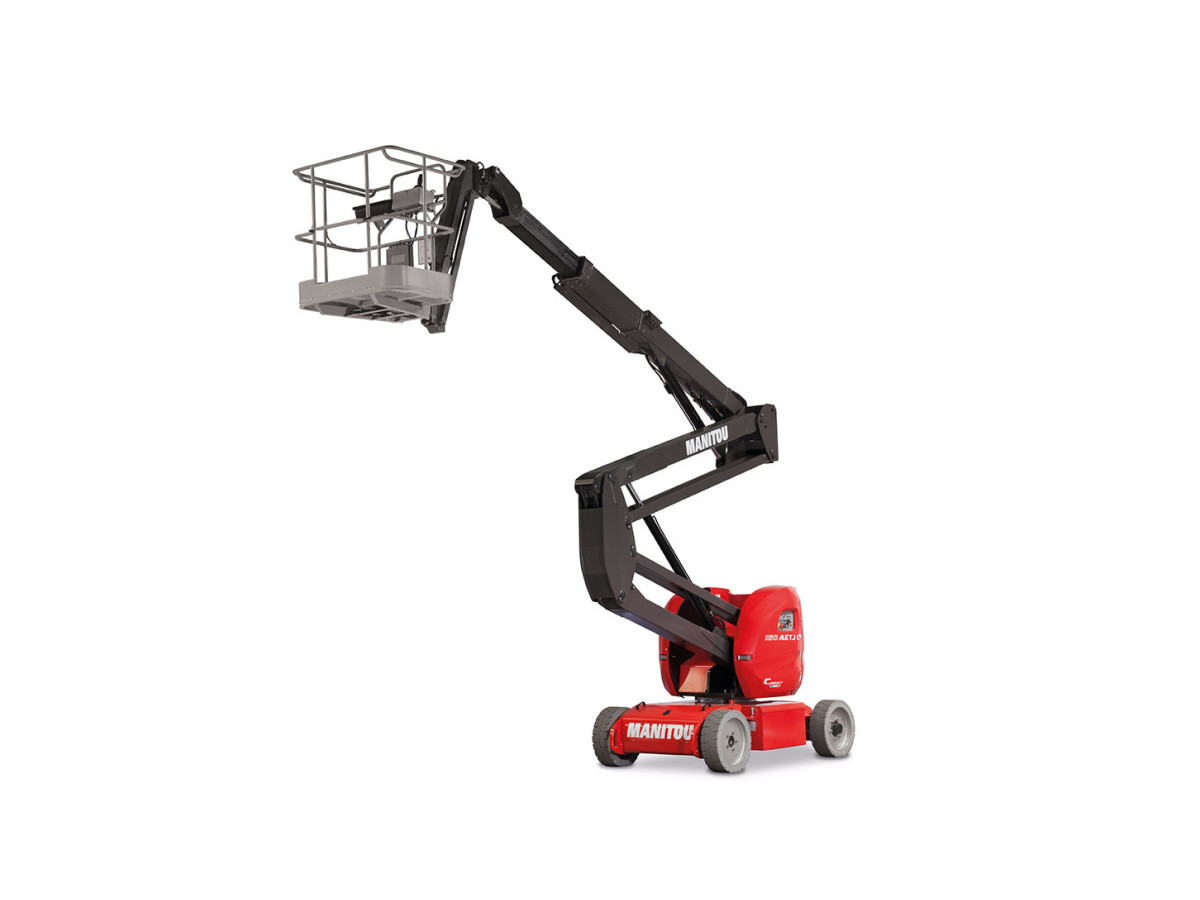

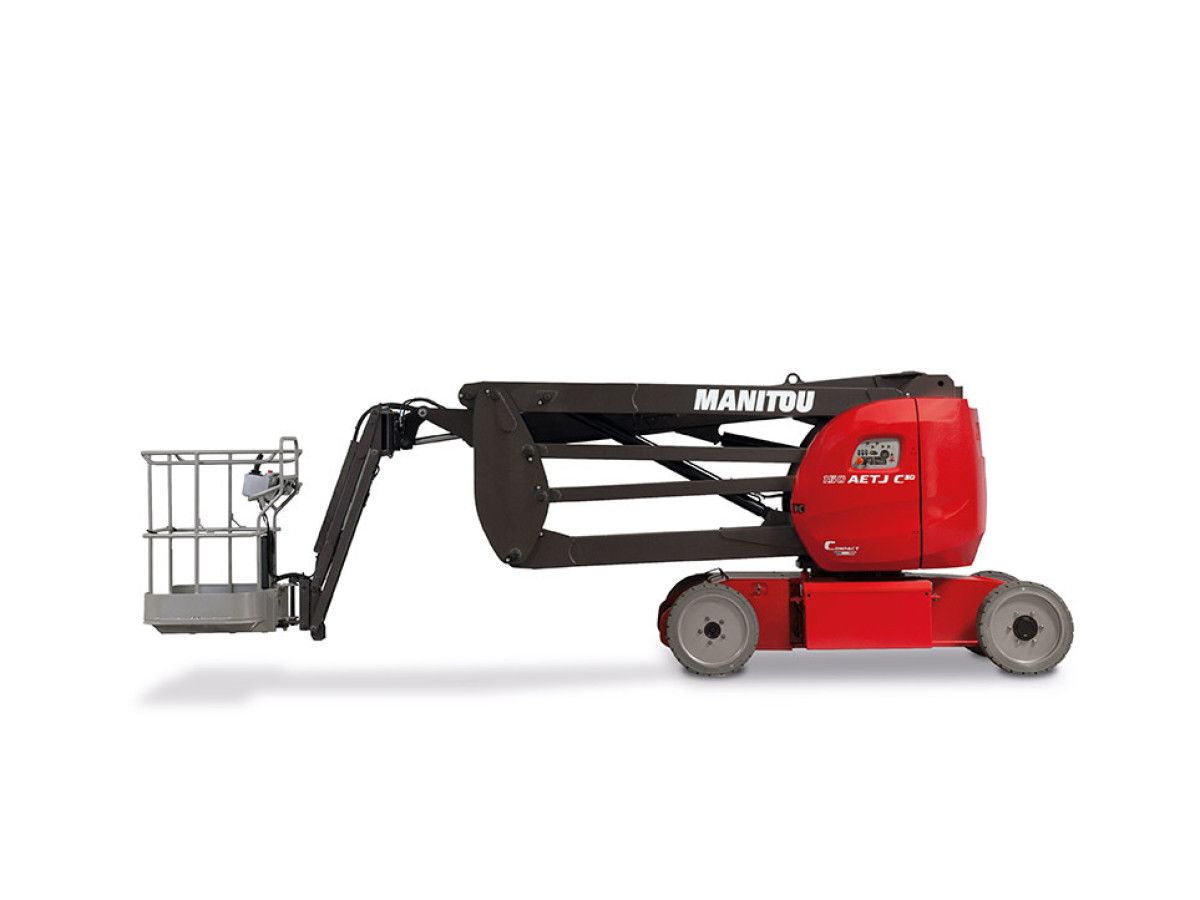

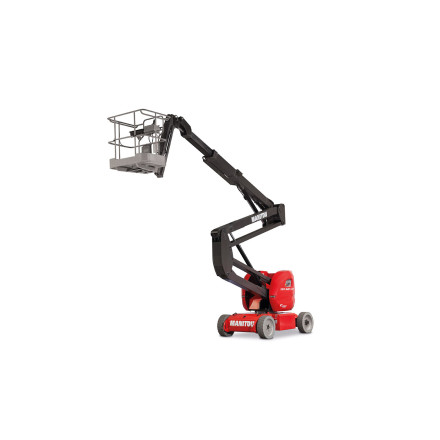

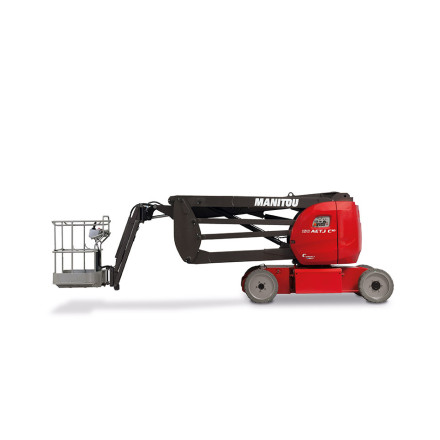

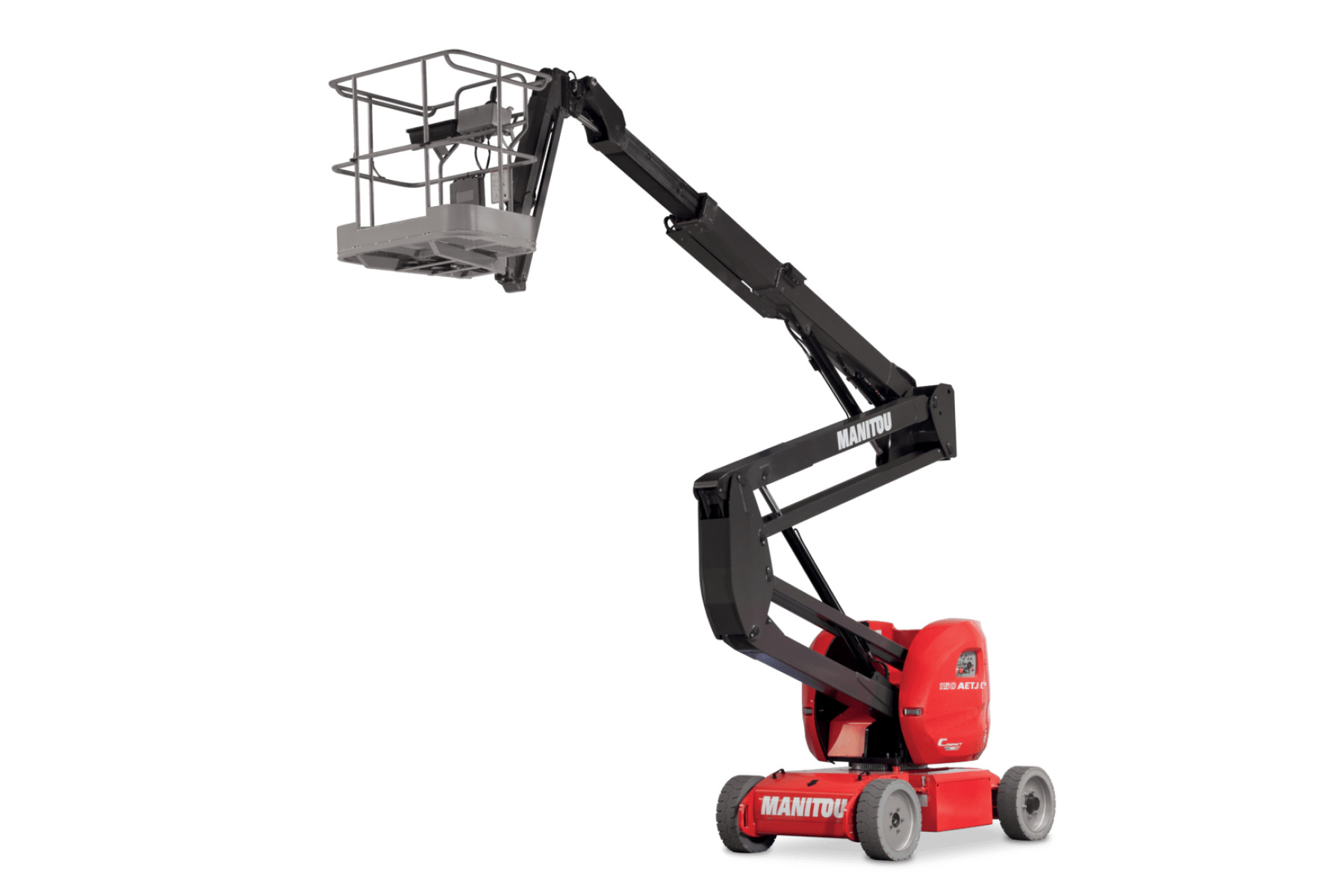

Mobile elevating work platforms 150 AETJ-C 3D
Request a Quote Download BrochureKey Information
Number of people (indoor)
2
Wheelbase
2 m
Number of people (outdoor)
2
Product Specifications for 150 AETJ-C 3D
- TECHNICAL CHARACTERISTICS
- Power sourceElectrical - Lead
- Number of people (indoor)2
- Wheelbase2 m
- Number of people (outdoor)2
- Platform capacity220 kg
- Working height14,6 m
- Turret rotation355 °
- Platform rotation (right)66 °
- Platform rotation (left)59 °
- Pendular arm rotation (top)65 °
- Pendular arm rotation (bottom)-65 °
- Pendular arm rotation (left)-70 °
- Pendular arm rotation (right)70 °
- WEIGHT
- Platform weight*7 175 kg
- DIMENSIONS
- Internal turning radius1,87 m
- Maximum outreach7,13 m
- WEIGHT AND DIMENSIONS
- Overall height1,97 m
- Platform height12,6 m
- Overall length6,05 m
- Overall width1,5 m
- Ground clearance at centre of wheelbase0,14 m
- Floor height (access)0,4 m
- Overall height (stowed)2,08 m
- Overall length (stowed)4,4 m
- Jib length1,26 m
- Platform dimensions (length)1,2 m
- Platform dimensions (width)0,92 m
- Counterweight offset (turret at 90°)0,12 m
- ** According to "REDUCE cycle"No
- *** With folded guardrailNo
- External turning radius3,96 m
- WHEELS
- Tires typeNon marking cushion
- Standard tires600 x 190 mm
- Drive wheels (rear)2
- Steering wheels (front)2
- Braking wheels (front)0
- Braking wheels (rear)2
- PERFORMANCES
- Number of cycles with STD Battery (HIRD)46
- Permissible leveling3 °
- Drive speed - stowed5 km/h
- Drive speed - raised0,6 km/h
- Travel speed (laden)5 km/h
- Gradeability22 %
- ENGINE
- On-board charger (V)48 V
- On-board charger (A)30 A
- Drive motor power rating3 kW
- Lift motor power3,7 kW
- HYDRAULICS
- Hydraulic Pressure200 bar
- TANK CAPACITIES
- Hydraulic tank capacity15 l
- NOISE AND VIBRATION
- Vibration on hands/arms0,52 m/s²
- BATTERY
- Battery energy11 kWh
- Battery capacity240 Ah
- Battery voltage48 V
