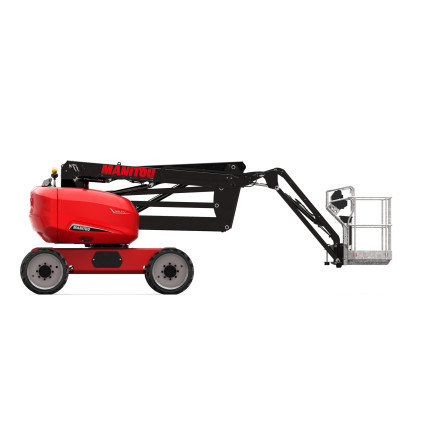

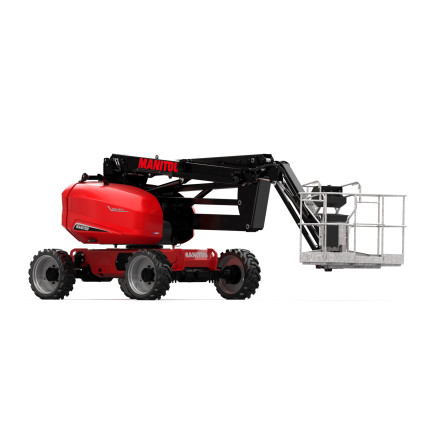

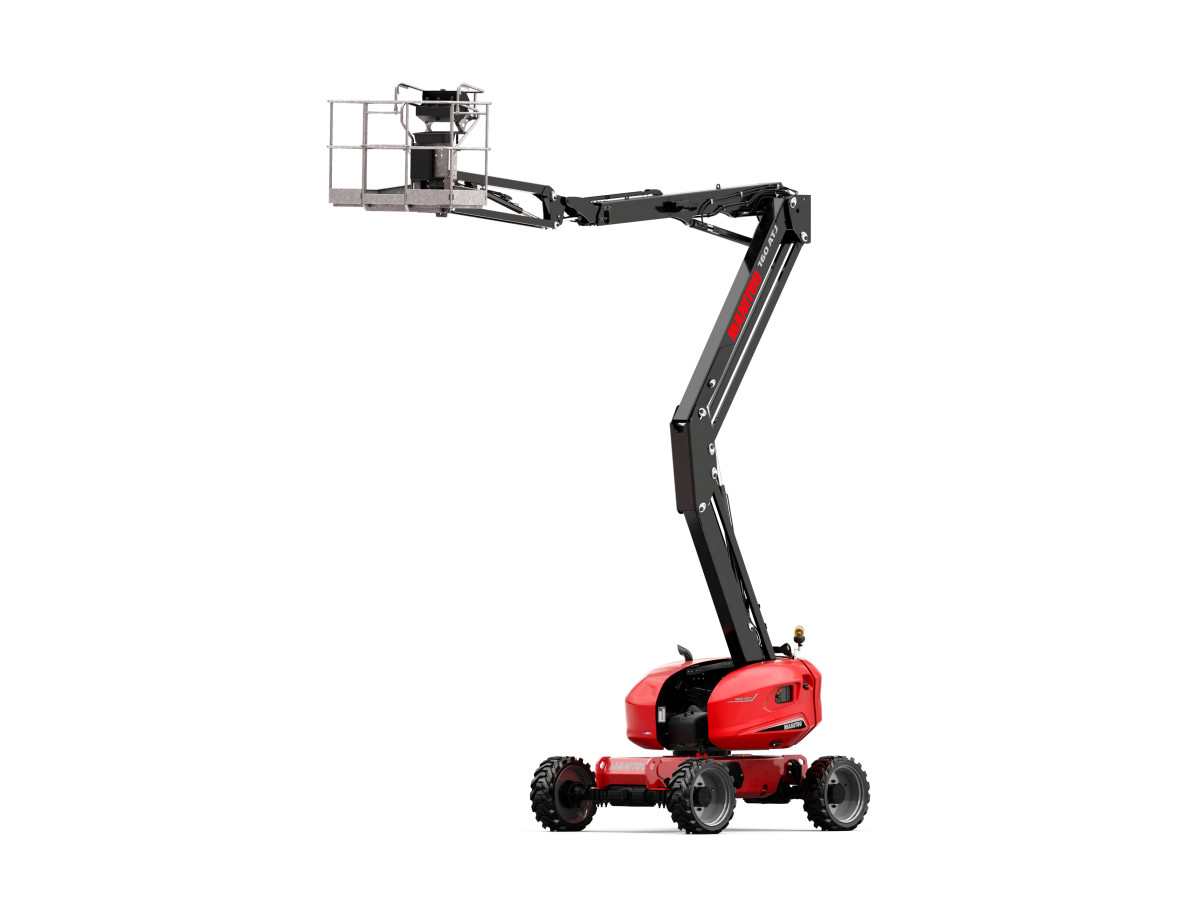

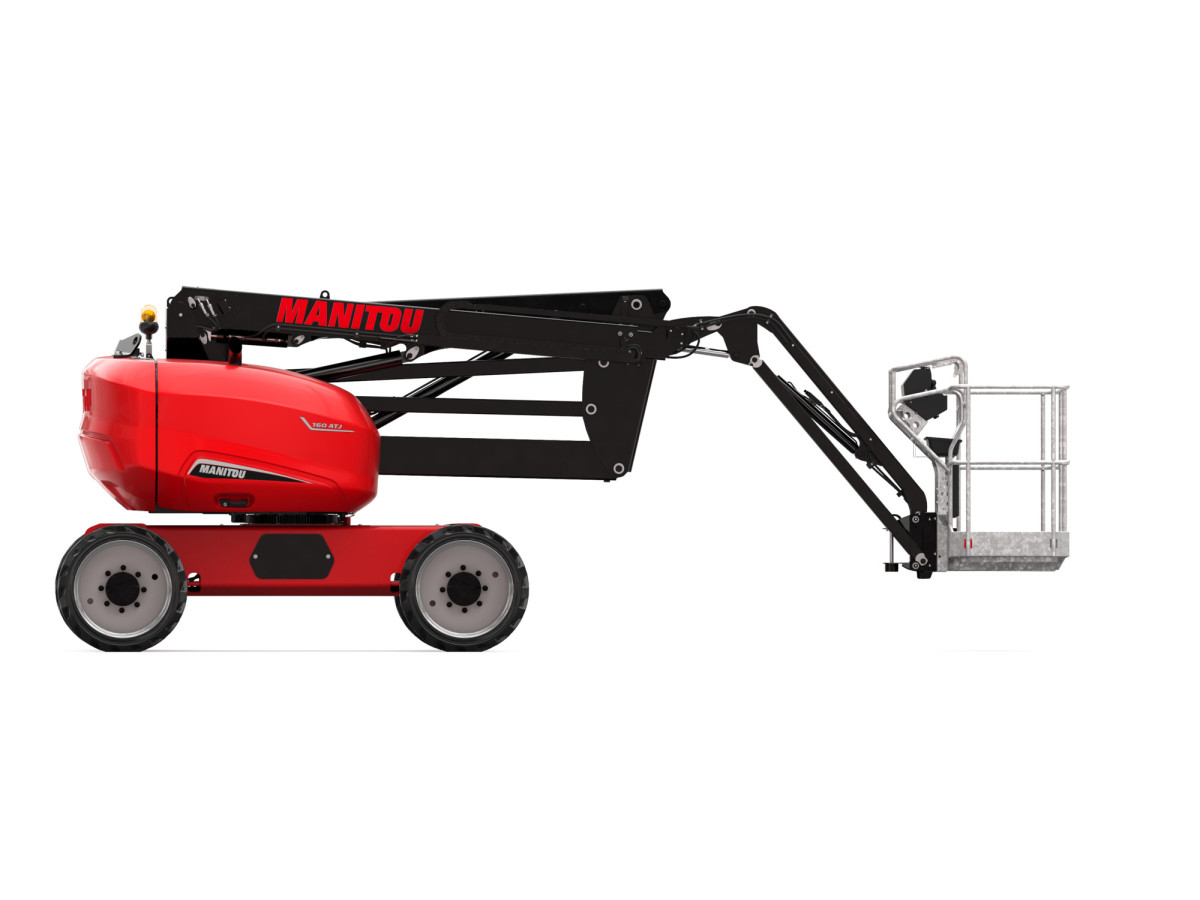

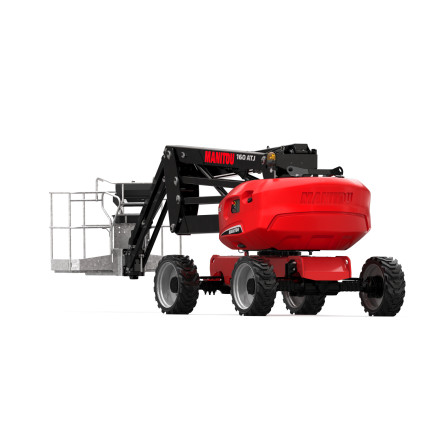

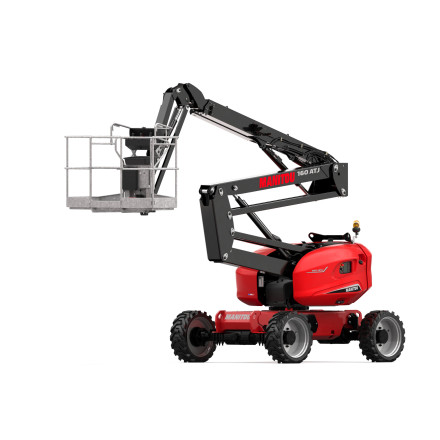

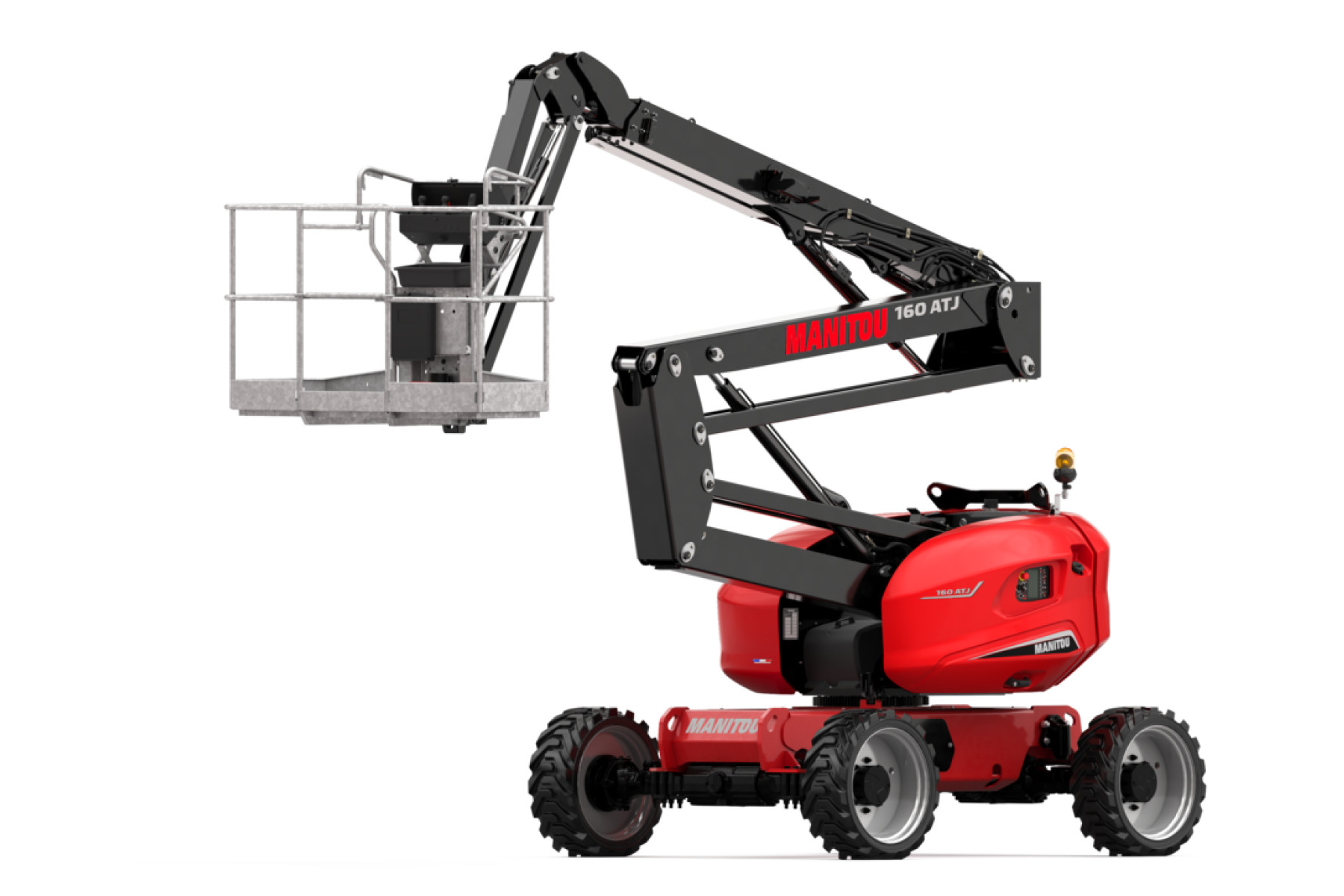

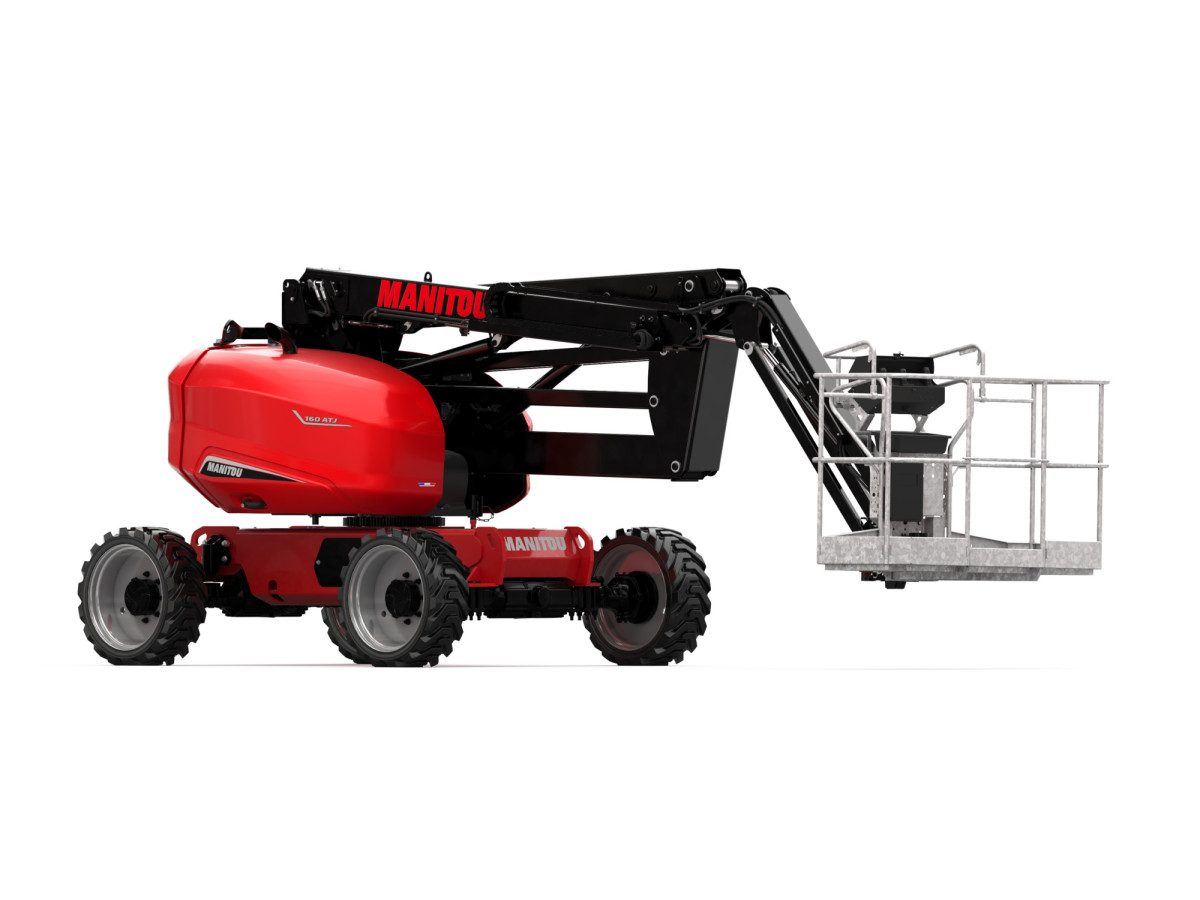

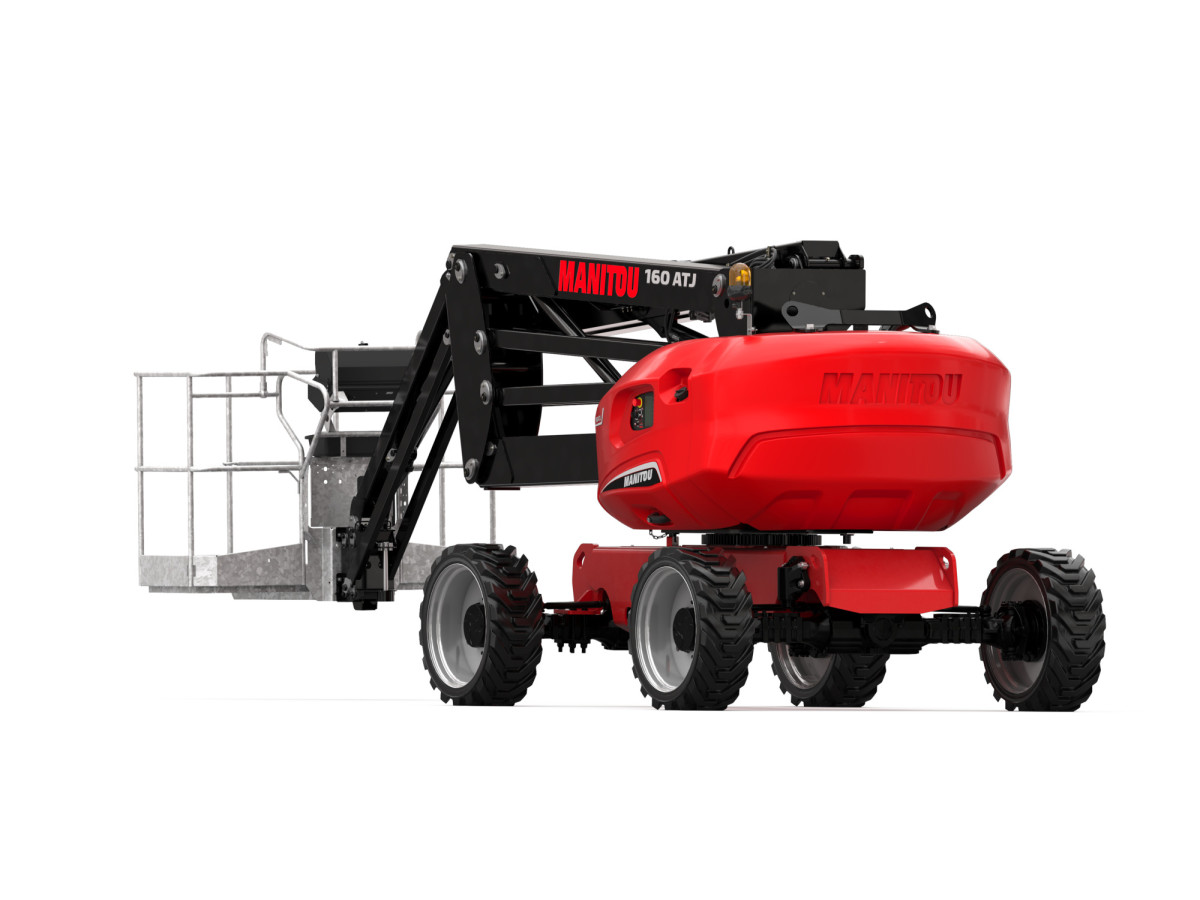

Mobile elevating work platforms 160 ATJ RC
Request a Quote Download BrochureKey Information
Number of people (indoor)
2
Wheelbase
2,2 m
Number of people (outdoor)
2
Product Specifications for 160 ATJ RC
- TECHNICAL CHARACTERISTICS
- Power sourceDiesel
- Number of people (indoor)2
- Wheelbase2,2 m
- Number of people (outdoor)2
- Platform capacity230 kg
- Working height16,02 m
- Turret rotation360 °
- Platform rotation (right)90 °
- Platform rotation (left)90 °
- Pendular arm rotation (bottom)59,5 °
- WEIGHT
- Platform weight*6 118 kg
- DIMENSIONS
- Maximum outreach8,3 m
- WEIGHT AND DIMENSIONS
- Overall height2,37 m
- Platform height14,02 m
- Overall length6,68 m
- Overall width2,38 m
- Ground clearance at centre of wheelbase0,36 m
- Floor height (access)0,4 m
- Overall height (stowed)2,63 m
- Overall length (stowed)4,44 m
- Platform dimensions (length)1,8 m
- Platform dimensions (width)0,8 m
- Counterweight offset (turret at 90°)0,19 m
- ** According to "REDUCE cycle"Yes
- *** With folded guardrailNo
- External turning radius3,63 m
- WHEELS
- Tires typeFoam-filled
- Drive wheels (front)2
- Drive wheels (rear)2
- Steering wheels (front)2
- Steering wheels (rear)2
- Braking wheels (front)0
- Braking wheels (rear)2
- PERFORMANCES
- Permissible leveling5 °
- Working speed1 km/h
- Drive speed - stowed5 km/h
- Drive speed - raised1 km/h
- Travel speed (laden)5 km/h
- Gradeability45 %
- ENGINE
- Engine brandKubota
- Engine modelD1105-E4B
- Engine normInterim Tier 4, Stage IIIA, Stage V
- Engine power (Hp)24,5 Hp
- Engine power (kW)18,5 kW
- HYDRAULICS
- Hydraulic Pressure340 bar
- TANK CAPACITIES
- Fuel52 l
- Hydraulic tank capacity54,2 l
- NOISE AND VIBRATION
- Noise to environment (LwA)105 dB
