Mobile elevating work platforms 160 ATJ+ e
Request a Quote Download BrochureKey Information
Number of people (indoor)
3
Wheelbase
2,3 m
Number of people (outdoor)
3
Product Specifications for 160 ATJ+ e
- TECHNICAL CHARACTERISTICS
- Power sourceElectrical - Lead
- Number of people (indoor)3
- Wheelbase2,3 m
- Number of people (outdoor)3
- Platform capacity408 kg
- Working height16,23 m
- Turret rotation350 °
- Platform rotation (right)90 °
- Platform rotation (left)90 °
- Pendular arm rotation (top)66,5 °
- Pendular arm rotation (bottom)-65,8 °
- Pendular arm rotation (left)90 °
- Pendular arm rotation (right)90 °
- WEIGHT
- Platform weight*7 790 kg
- DIMENSIONS
- Maximum outreach8,34 m
- WEIGHT AND DIMENSIONS
- Overall height2,48 m
- Platform height14,26 m
- Overall length6,88 m
- Overall width2,38 m
- Ground clearance at centre of wheelbase0,39 m
- Floor height (access)0,42 m
- Outer turning radius (with forks)3,78 m
- Overall height (stowed)2,94 m
- Overall length (stowed)4,7 m
- Platform dimensions (length)2,3 m
- Platform dimensions (width)0,9 m
- Counterweight Oversize / Reach0,37 m
- External turning radius (over tyres)3,78 m
- Counterweight offset (turret at 90°)0,37 m
- ** According to "REDUCE cycle"Yes
- *** With folded guardrailNo
- External turning radius3,78 m
- WHEELS
- Tires typeFoam Filled Non Marking
- Standard tires914 x 381 mm / 36X15D610
- Drive wheels (front)2
- Drive wheels (rear)2
- Steering wheels (front)2
- Steering wheels (rear)2
- Braking wheels (front)0
- Braking wheels (rear)2
- PERFORMANCES
- Number of cycles with STD Battery (HIRD)50
- Permissible leveling5 °
- Working speed1 km/h
- Drive speed - stowed5,3 km/h
- Drive speed - raised0,7 km/h
- Travel speed (laden)5 km/h
- Gradeability45 %
- ENGINE
- On-board charger (V)48 V
- On-board charger (A)60 A
- HYDRAULICS
- Hydraulic Pressure250 bar
- TANK CAPACITIES
- Hydraulic tank capacity24 l
- NOISE AND VIBRATION
- Vibration on hands/arms2,5 m/s²
- Noise to environment (LwA)70 dB
- BATTERY
- Battery energy23 kWh
- Battery capacity480 Ah
- Battery voltage48 V
Discover Similar Equipment
Mobile elevating work platforms

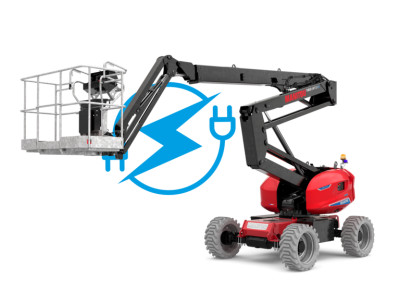

180 ATJ e
