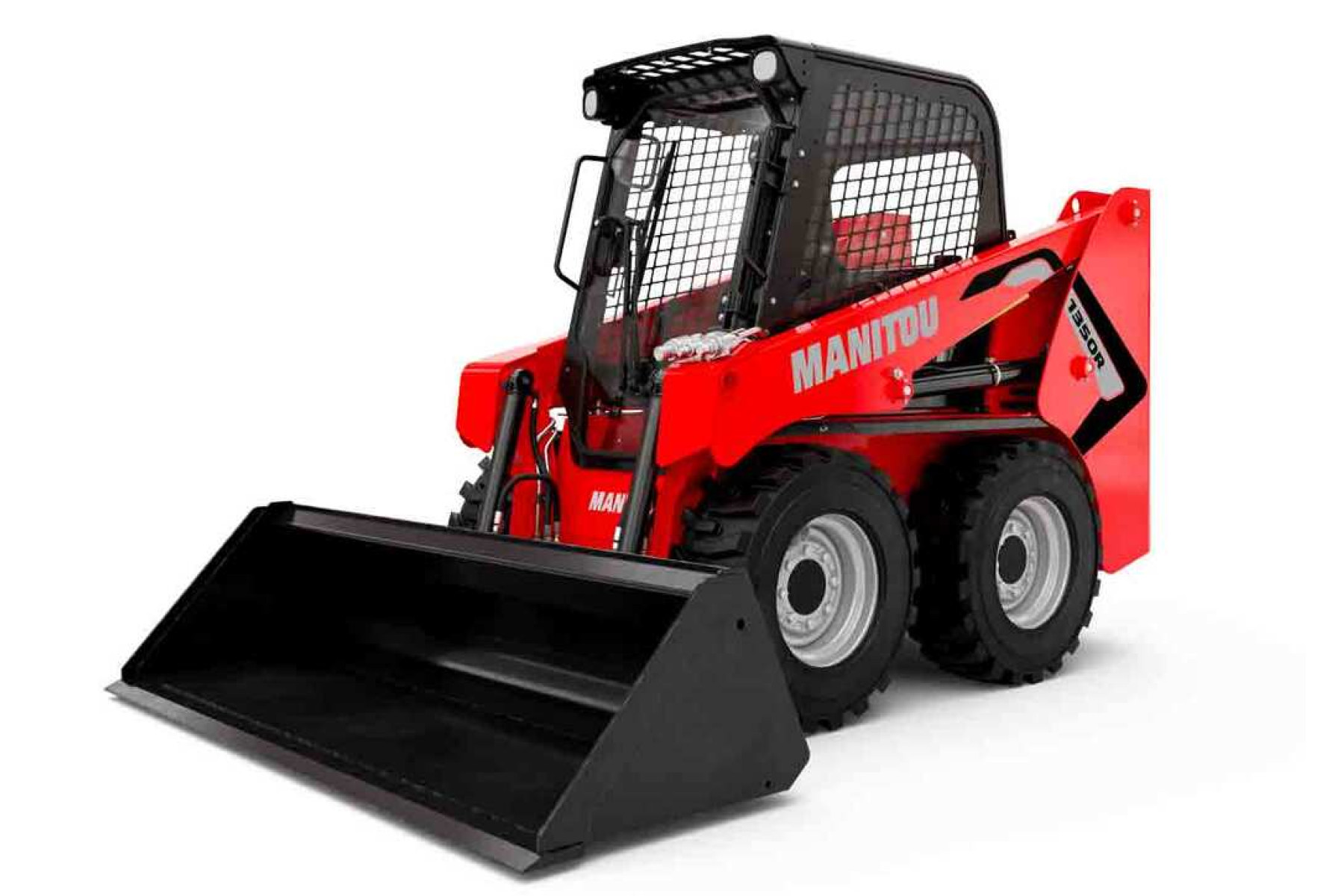

Manitou 1350R NXT2

Compact Loaders 1350R NXT2

Request a Quote Download Brochure

Key Information

Wheelbase

950 mm

Rated Operating Capacity

612 kg

Rated Operating Capacity with Optional Counterweight

680 kg

Contact Our Experts

Monday to Friday 8am-4:30pm (CAT)

Product Specifications for 1350R NXT2

  • TECHNICAL CHARACTERISTICS
    • Power sourceDiesel
    • Wheelbase950 mm
    • Rated Operating Capacity612 kg
    • Rated Operating Capacity with Optional Counterweight680 kg
  • WEIGHT
    • Unladen weight2 384 kg
  • DIMENSIONS
    • Departure angle25 °
  • WEIGHT AND DIMENSIONS
    • Ground clearance203 mm
    • Height to Hinge Pin - Fully Raised2 794 mm
    • Bucket Width1 372 mm
    • Overall Operating Height - Fully Raised3 670 mm
    • Overall length with bucket3 076 mm
    • Dump height2 123 mm
    • Dump reach - Full height584 mm
    • Seat to ground height871 mm
    • Overall width less bucket1 364 mm
    • Overall length - Less Bucket2 360 mm
    • Clearance Radius - Front with Bucket1 842 mm
    • Dump angle at full height40 °
    • Rear departure angle25 °
  • WHEELS
    • Standard tires10.00 x 16.5 HD
  • PERFORMANCES
    • Travel speed (unladen)12,9 km/h
  • ENGINE
    • Engine brandYanmar
    • Engine model 4TNV88C-KMS
    • Engine normStage V, Tier 4
    • Engine power (Hp)46 Hp
    • Engine power (kW)34,3 kW
    • Displacement2,2 l
    • Max. torque146,2 Nm
    • Engine rotation2 800 rpm
    • Alternator100 kW
    • Starter2,3 kW
  • HYDRAULICS
    • Auxiliary Hydraulic Pressure207 bar
    • Standard flow - Auxiliary hydraulics63,6 l/min
  • TANK CAPACITIES
    • Fuel59,4 l
    • Cooling liquid7,9 l
    • Hydraulic tank capacity34,8 l
  • NOISE AND VIBRATION
    • Vibration on hands/arms1,9 m/s²
    • Noise to environment (LwA)82 dB
    • Whole-Body Vibration (ISO 2631-1)0,81 m/s²
    • Noise at driving position (LpA)100 dB
  • BATTERY
    • Battery voltage12 V
