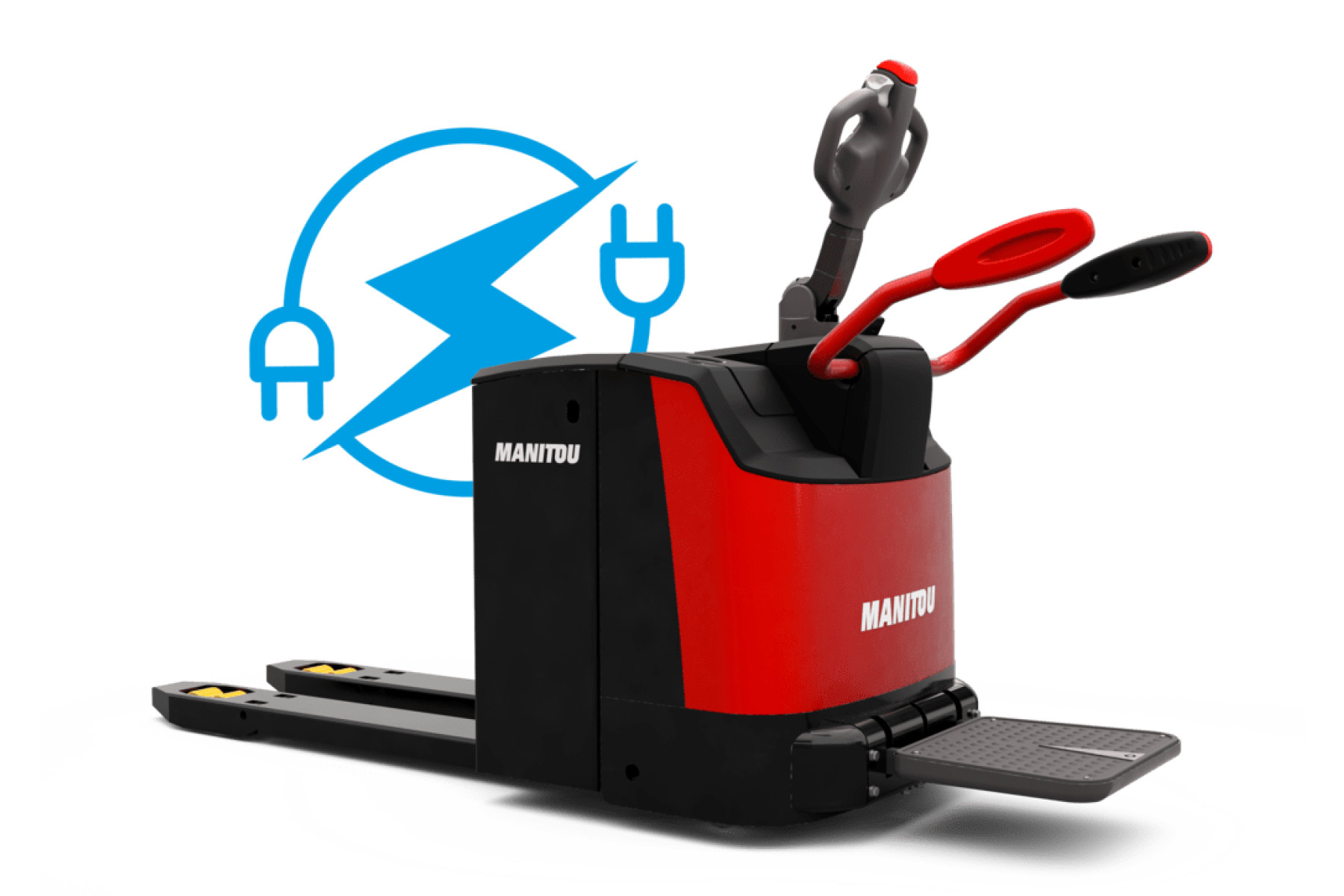

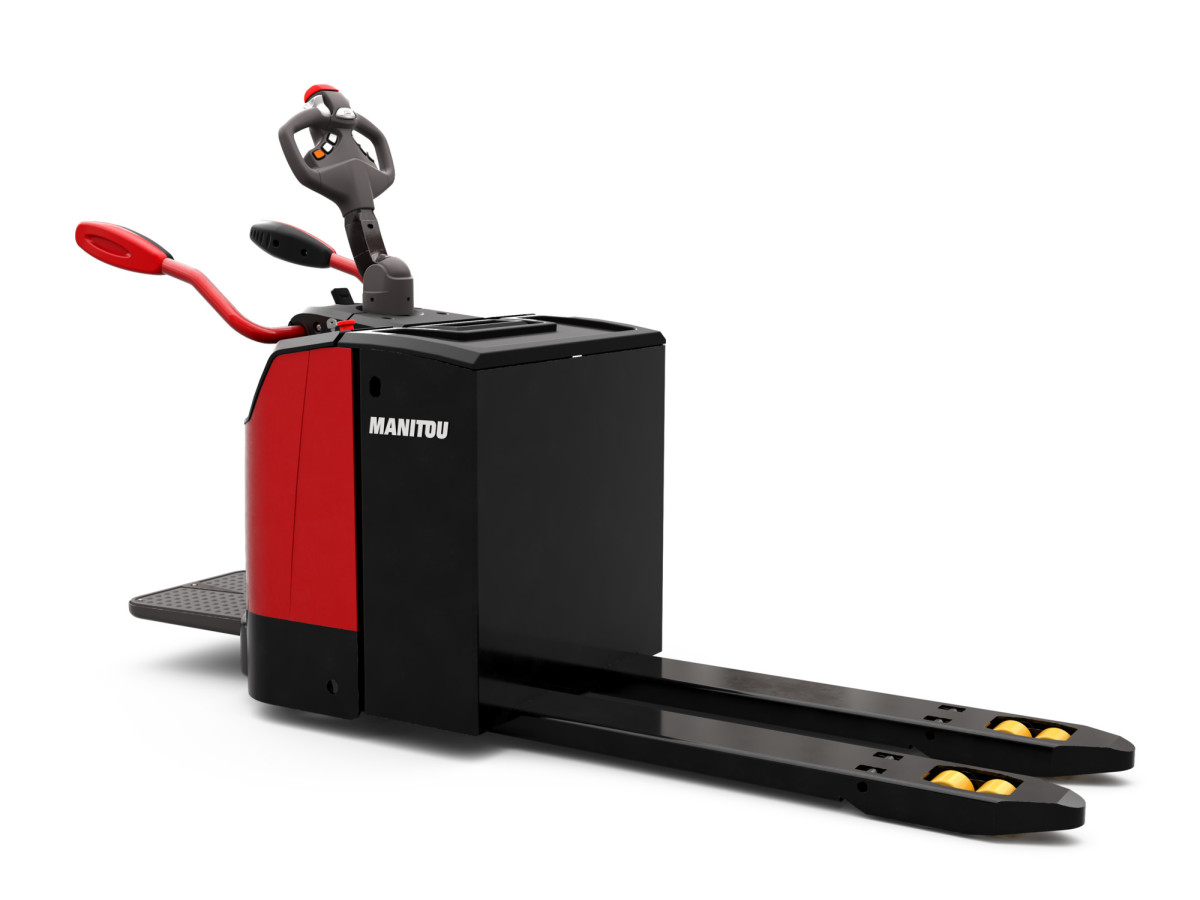

Warehousing EP 20P Easy
Request a Quote Download BrochureKey Information
Load center of gravity
600 mm
Wheelbase
1 465 mm
Load distance, centre of drive axle to fork
940 mm
Product Specifications for EP 20P Easy
- TECHNICAL CHARACTERISTICS
- Model NameEP 20P Easy
- Power sourceElectrical - Lead
- Operator typeCarried
- Load center of gravity600 mm
- Wheelbase1 465 mm
- Load distance, centre of drive axle to fork940 mm
- Max. capacity2 000 kg
- WEIGHT
- Service weight785 kg
- Weight on front axle (laden)1 165 kg
- Weight on front axle (Unladen)610 kg
- Weight on rear axle (laden)1 760 kg
- Weight on rear axle (Unladen)175 kg
- DIMENSIONS
- Overall length (unfolded platform)2 373 mm
- WEIGHT AND DIMENSIONS
- Height tiller min.1 100 mm
- Height tiller max.1 419 mm
- Fork height in low position85 mm
- Overall length1 970 mm
- Length to face of forks821 mm
- Overall width809 mm
- Forks section64 mm
- Forks width170 mm
- Forks length1 150 mm
- Distance between support arms540 mm
- Forks spread540 mm
- Ground clearance at centre of wheelbase20 mm
- Aisle Width for pallets 1000 x 1200 crossways2 596 mm
- Aisle width for 800 x 1200 pallet lengthways2 646 mm
- Turning radius2 186 mm
- WHEELS
- Tires typePolyurethane cushion
- Dimensions of front wheels230 x 75
- Dimensions of rear wheels85 x 110
- Number of stabilizer wheels2
- Size of the stabilizer wheels125 x 50
- Number of front wheels3
- Number of rear wheels2
- Number of drive wheels1
- Front wheel gauge575 mm
- Rear wheel gauge370 mm
- MASTS
- Mast lifting height125 mm
- Max. lifting height210 mm
- PERFORMANCES
- Travel speed (laden)7,5 km/h
- Travel speed (unladen)9,5 km/h
- Lifting speed (laden)0,04 m/s
- Lifting speed (unladen)0,06 m/s
- Gradeability (laden)8 %
- Gradeability (unladen)16 %
- Service brakeElectro magnetic
- ENGINE
- Drive motor rating S2 60 min1,5 kW
- Lift motor rating at S3 15%2,2 kW
- TRANSMISSION
- Parking brakeHandle Release
- NOISE AND VIBRATION
- Measured/guaranteed mean noise level at the ear of the operator65 dB
- BATTERY
- Battery capacity270 Ah
- Battery voltage24 V
- Battery weight (+/- 5%)210 kg
- Battery according to DIN 43531/35/36 A, B, CDIN 43535-B

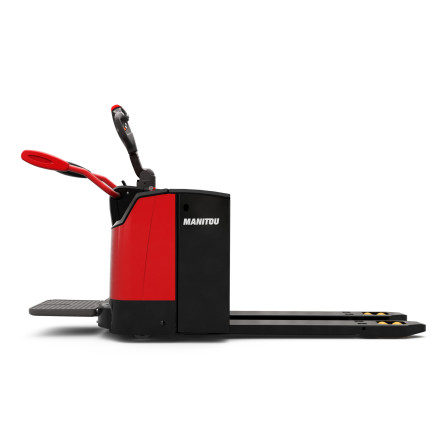

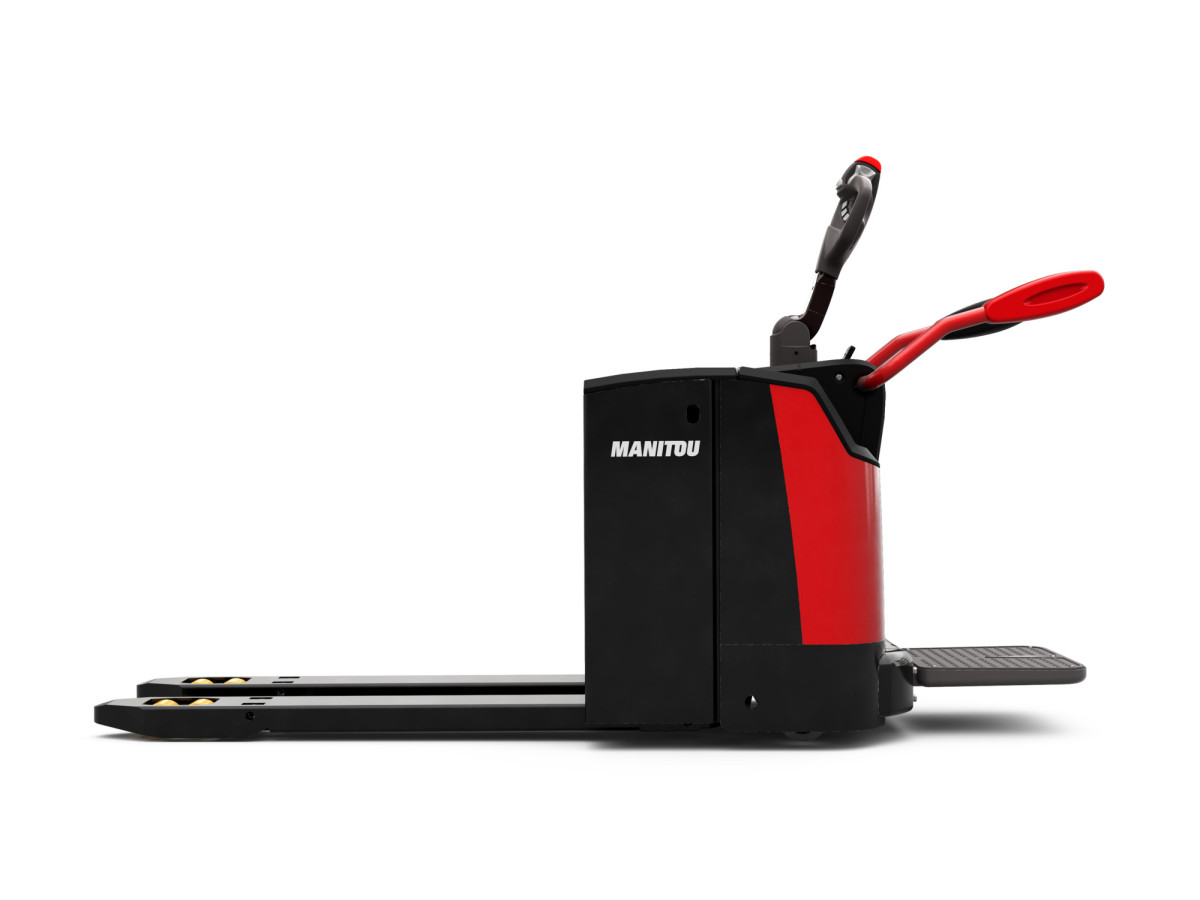

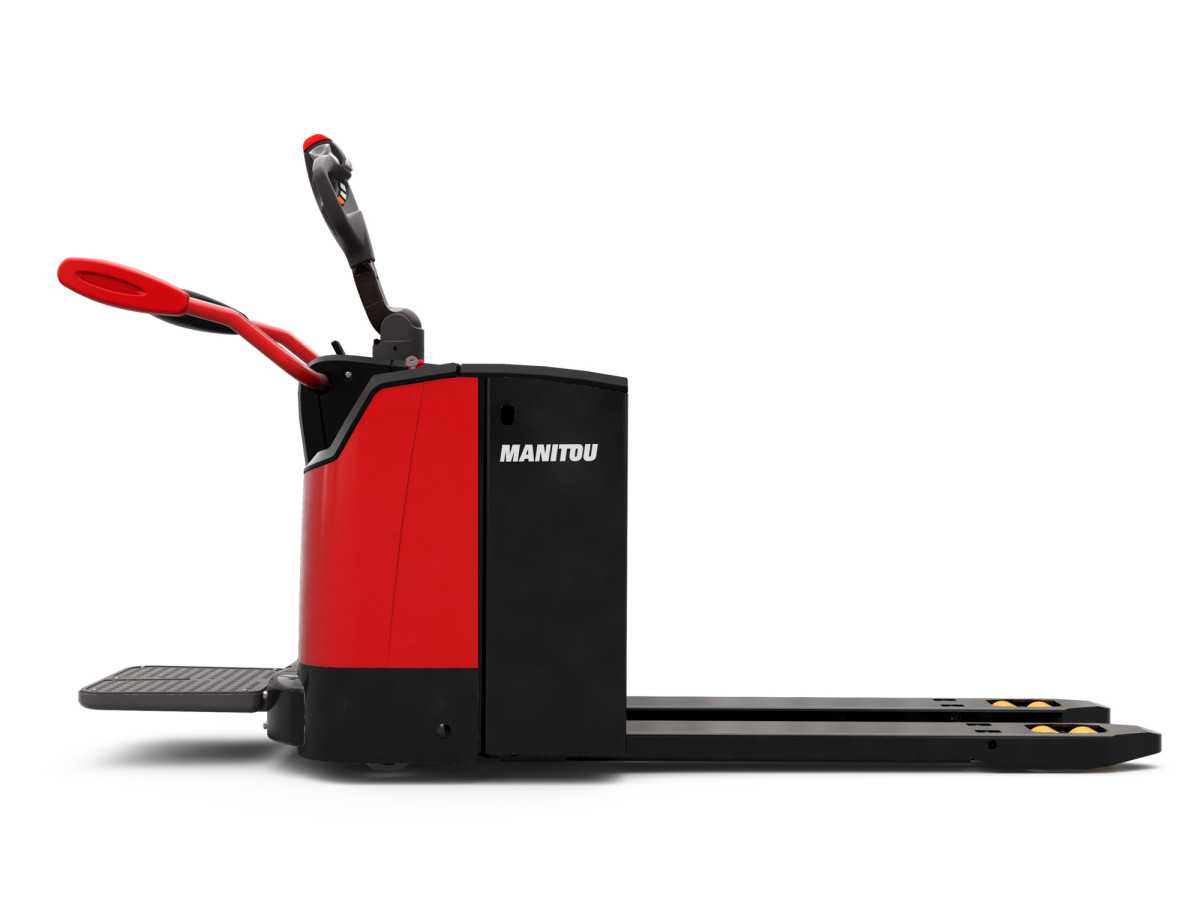

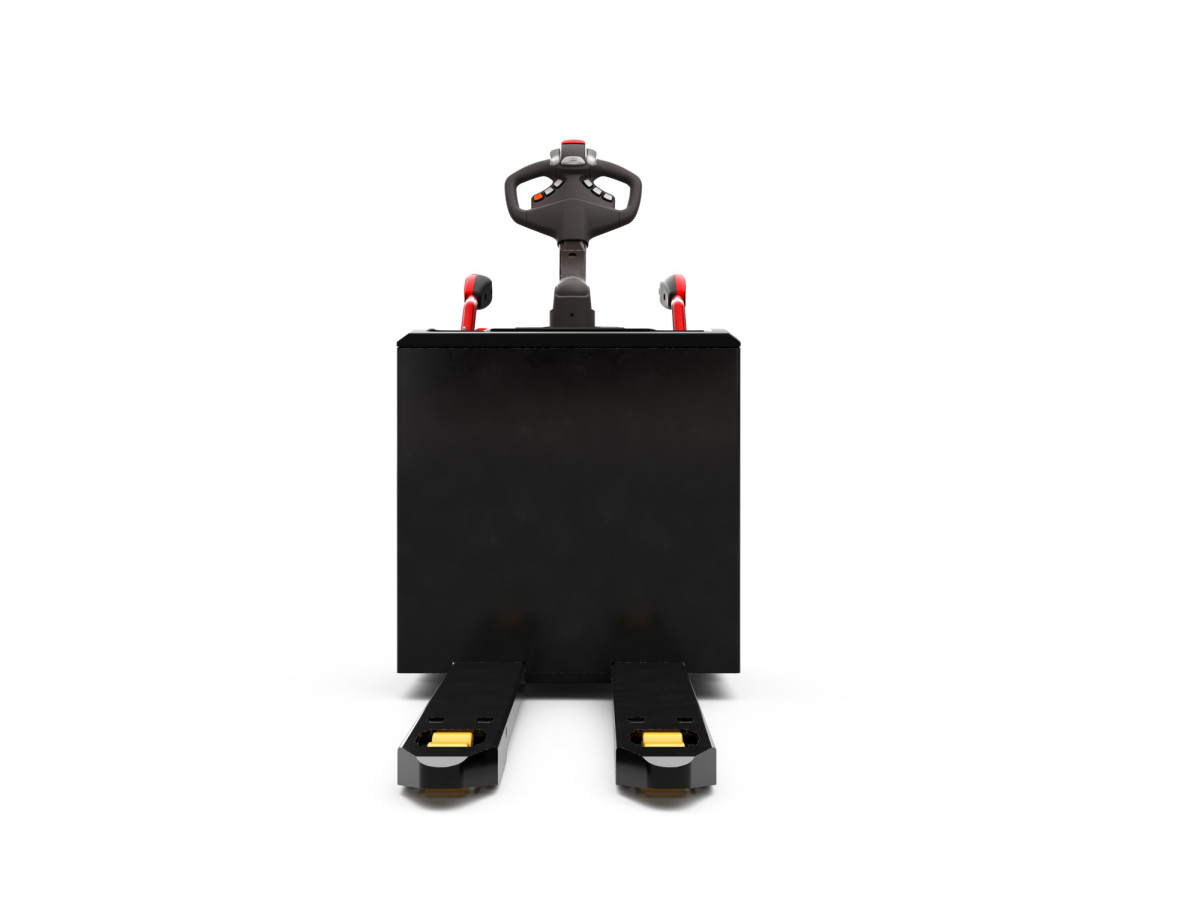

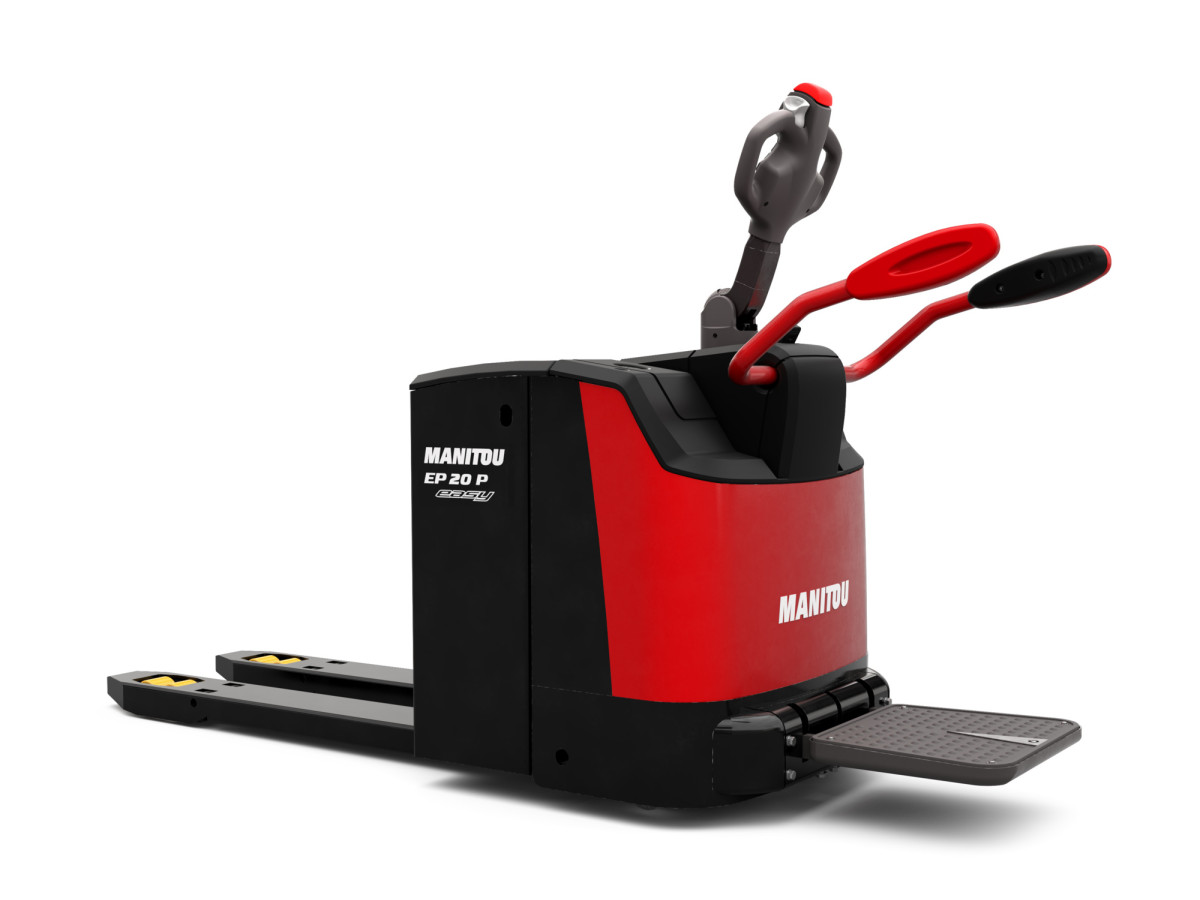

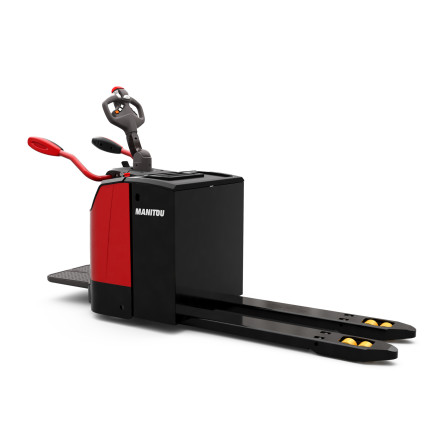

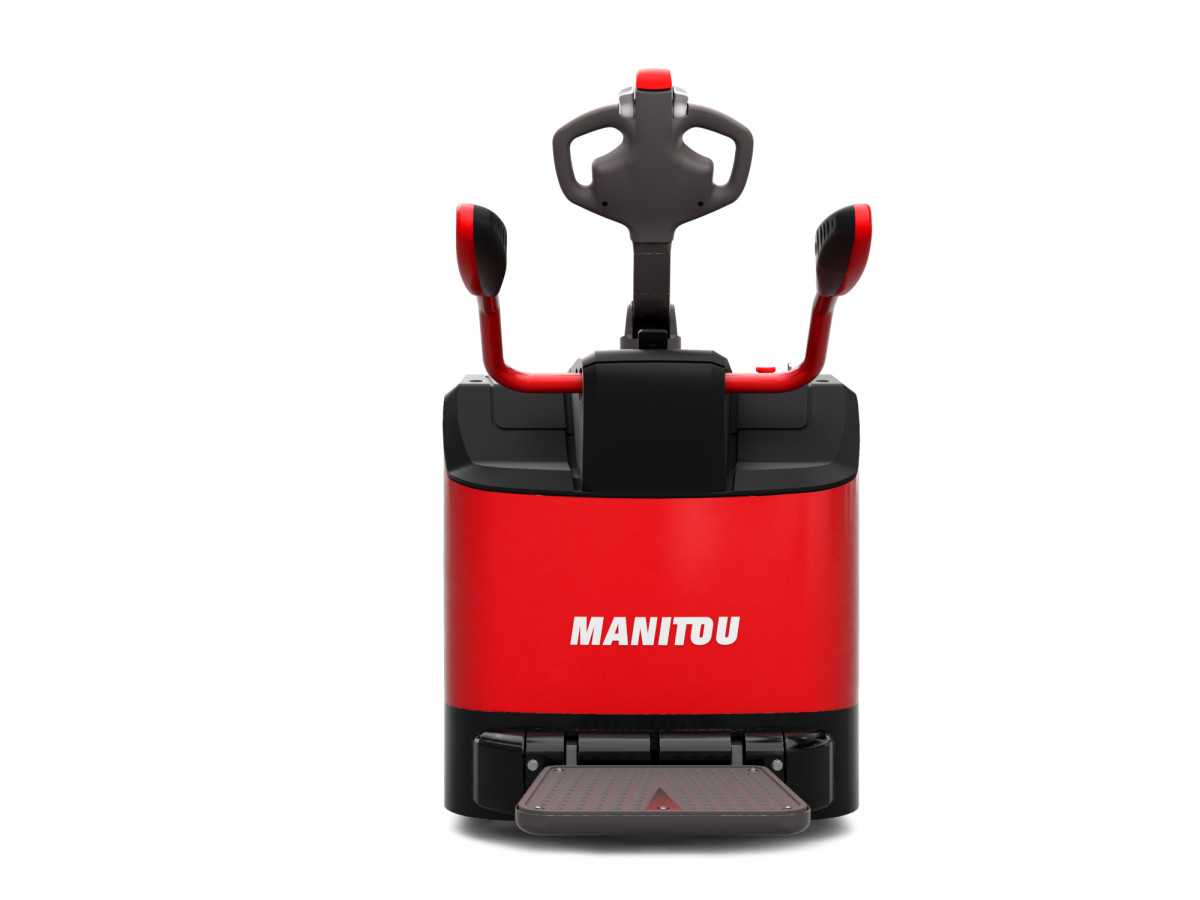

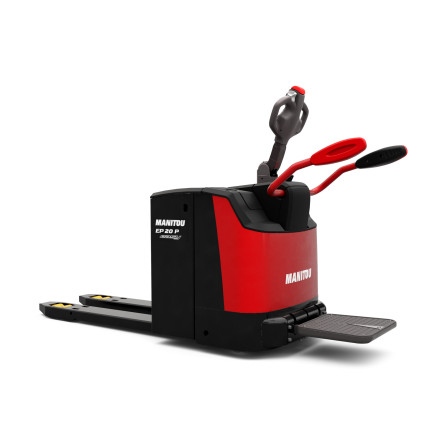

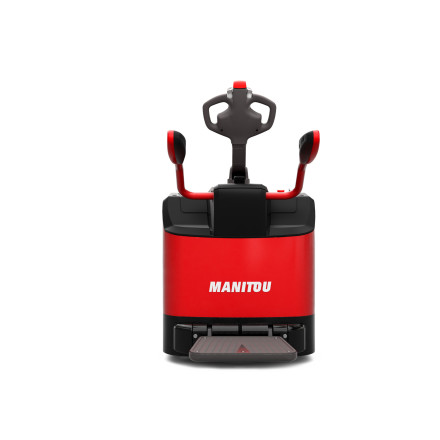

Media Gallery
