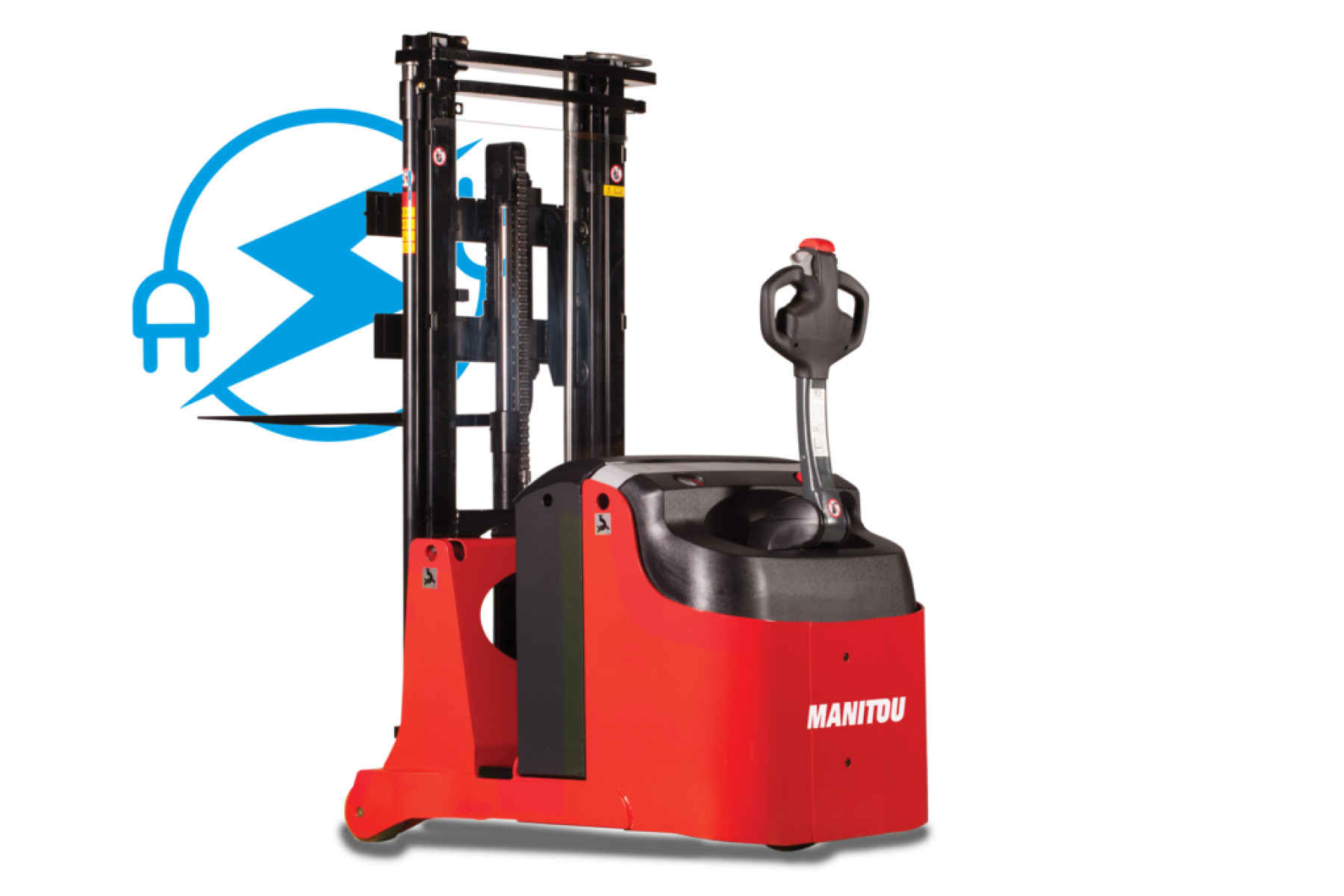

Warehousing ES-C 504
Request a Quote Download BrochureKey Information
Load center of gravity
400 mm
Wheelbase
817 mm
Distance from Load backrest to center of rear axle
96 mm
Product Specifications for ES-C 504
- TECHNICAL CHARACTERISTICS
- Model NameES-C 504
- Power sourceElectrical - Lead
- Operator typePedestrian
- Load center of gravity400 mm
- Wheelbase817 mm
- Distance from Load backrest to center of rear axle96 mm
- Max. capacity400 kg
- WEIGHT
- Service weight1 120 kg
- WEIGHT AND DIMENSIONS
- Height tiller min.830 mm
- Height tiller max.1 385 mm
- Fork height in low position35 mm
- Overall length1 900 mm
- Length to face of forks1 100 mm
- Overall width923 mm
- Forks section30 mm
- Forks width100 mm
- Forks length800 mm
- Fork carriage ISO 2328 (class/form) A/B2B
- Fork carriage width750 mm
- Ground clearance below mast60 mm
- Ground clearance at centre of wheelbase69 mm
- Aisle Width for pallets 1000 x 1200 crossways2 595 mm
- Aisle width for 800 x 1200 pallet lengthways2 705 mm
- Turning radius1 130 mm
- WHEELS
- Tires typePolyurethane cushion
- Size of drive wheels230x70
- Size of load wheels150x70
- Number of load wheels2
- Number of front wheels1
- Number of rear wheels2
- Number of drive wheels1
- Rear wheel gauge826 mm
- MASTS
- Max. lifting height4 200 mm
- PERFORMANCES
- Travel speed (laden)6 km/h
- Travel speed (unladen)6 km/h
- Lifting speed (laden)0,18 m/s
- Lifting speed (unladen)0,3 m/s
- Lowering speed (laden)0,27 m/s
- Lowering speed (unladen)0,22 m/s
- Max Gradeability (laden)7 %
- Max Gradeability (unladen)10 %
- Service brakeElectro magnetic
- ENGINE
- Drive motor rating S2 60 min1,5 kW
- Lift motor rating at S3 15%3 kW
- NOISE AND VIBRATION
- Sound level at the driver's ear according to DIN 12 05365 dB
- BATTERY
- Battery capacity180 Ah
- Battery voltage24 V
- Battery weight (+/- 5%)175 kg
- Battery according to DIN 43531/35/36 A, B, CDIN 43535-B
