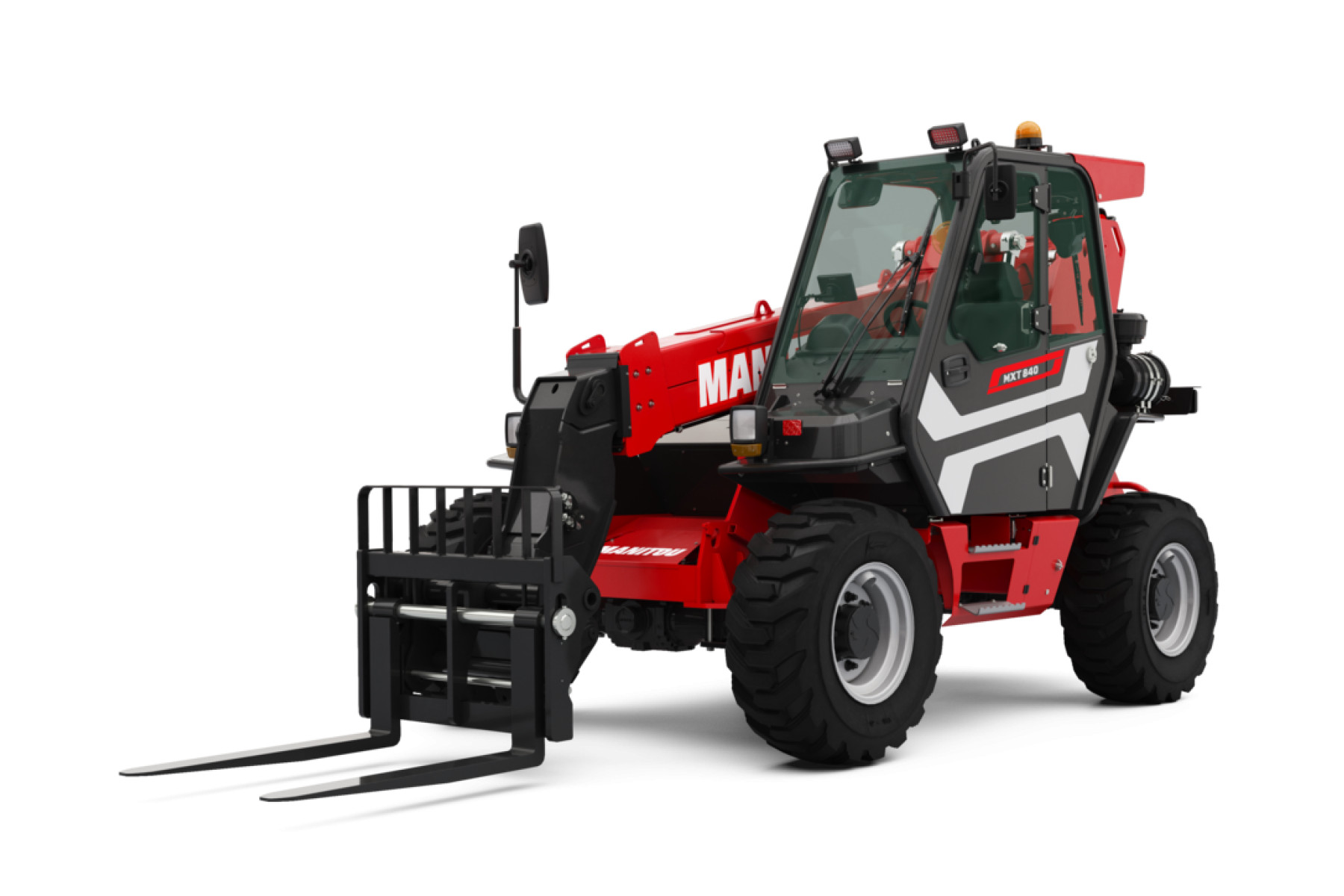

Construction telehandlers MXT 840 P IND
Request a Quote Download BrochureKey Information
Wheelbase
2 582 mm
Max. capacity
4 000 kg
Lifting
12,7 s
Product Specifications for MXT 840 P IND
- TECHNICAL CHARACTERISTICS
- Power sourceDiesel
- Wheelbase2 582 mm
- Cab certificationCabin ROPS - FOPS level 2
- Max. capacity4 000 kg
- WEIGHT
- Unladen weight (with forks)8 500 kg
- DIMENSIONS
- Maximum outreach4 230 mm
- WEIGHT AND DIMENSIONS
- Overall height2 595 mm
- Overall length (with forks)5 876 mm
- Length to face of forks4 676 mm
- Overall width2 387 mm
- Forks section50 mm
- Forks width125 mm
- Forks length1 200 mm
- Ground clearance372 mm
- Overall cab width850 mm
- Overall length to carriage4 596 mm
- External turning radius (over tyres)3 900 mm
- Tilt-down angle134 °
- Tilt-up angle12 °
- WHEELS
- Tires typeInflatable
- Standard tiresBKT 16.0/70-20 14PR- EM936 SPL
- Drive wheels (front)2
- Drive wheels (rear)2
- Steering wheels (front)2
- Steering wheels (rear)2
- MASTS
- Max. lifting height7 600 mm
- PERFORMANCES
- Lifting12,7 s
- Lowering9 s
- Retraction6,2 s
- Extension9,2 s
- Dump3,9 s
- Lifting time (unladen)12,7 s
- Lowering time (unladen)9 s
- Boom extension time (unladen)9,2 s
- Boom retraction time (unladen)6,2 s
- Service brakeOil-immersed multi-discs braking on front & rear axles
- ENGINE
- Engine brandPerkins
- Engine model1104D-44T
- Engine normStage IIIA
- Engine power (Hp)94 Hp
- Engine power (kW)70 kW
- Capacity of cylinders4 400 cm³
- Number of cylinders4
- Max. torque392 Nm
- Engine rotation1 400 rpm
- TRANSMISSION
- Transmission typeTorque converter
- Drawbar pull (Laden)7 800 daN
- Drawbar pull7 800 daN
- Max. travel speed26 km/h
- Parking brakeOil-Immersed Multi-Disc Braking front and rear Axle
- Transmission brandCarraro
- Max. travel speed (may vary according to applicable regulations)26 km/h
- Number of gears (forward)4
- Number of gears (reverse)4
- HYDRAULICS
- Hydraulic pump typeGear pump
- Hydraulic flow91,4 l/min
- Hydraulic Pressure250 bar
- TANK CAPACITIES
- Fuel100 l
- Cooling liquid16 l
- Hydraulic oil125 l
- NOISE AND VIBRATION
- Noise to environment (LwA)110 dB
- Noise at driving position (LpA)85 dB
- BATTERY
- Battery technologyLead acid
- Battery capacity130 Ah
- Battery voltage12 V
