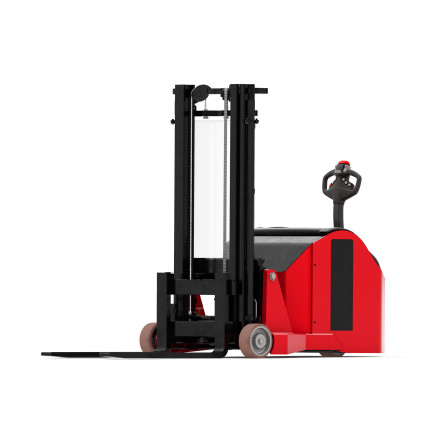

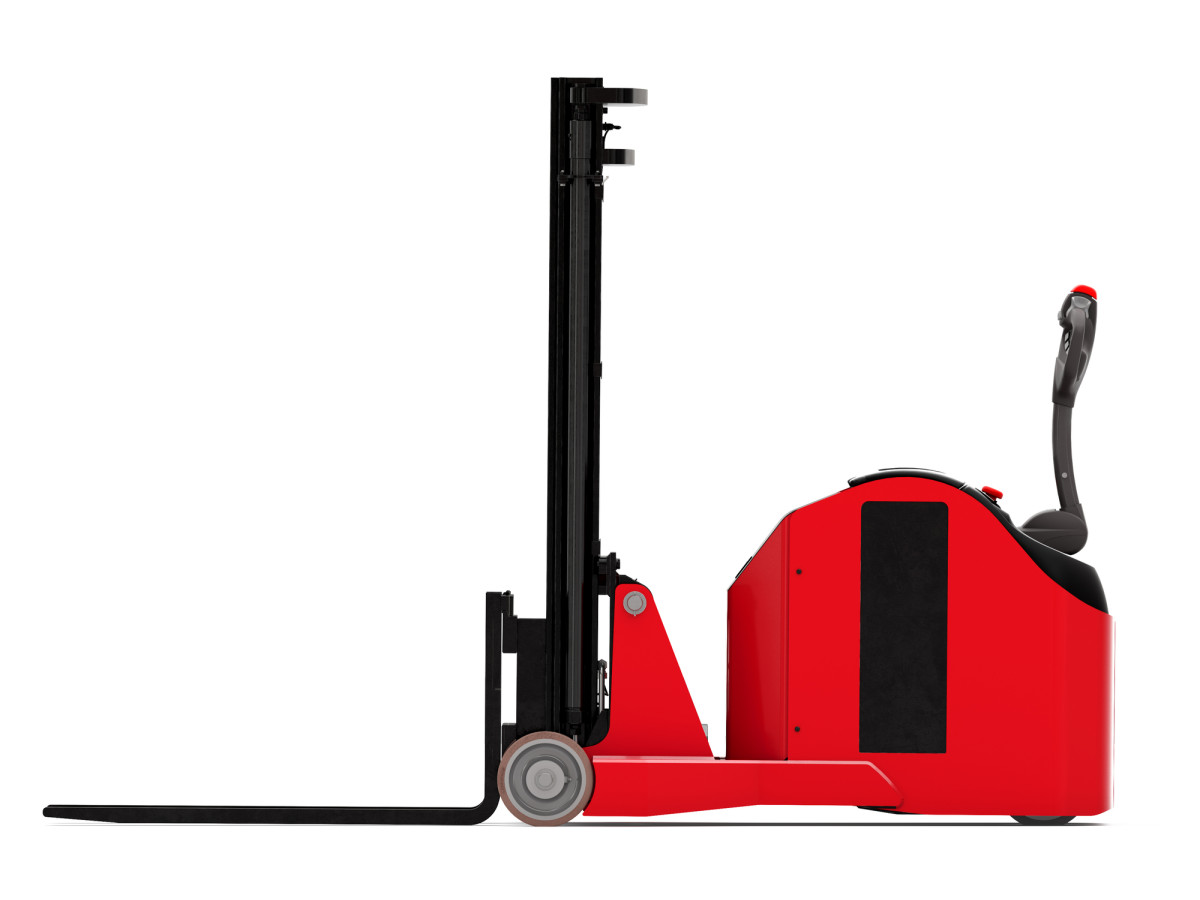

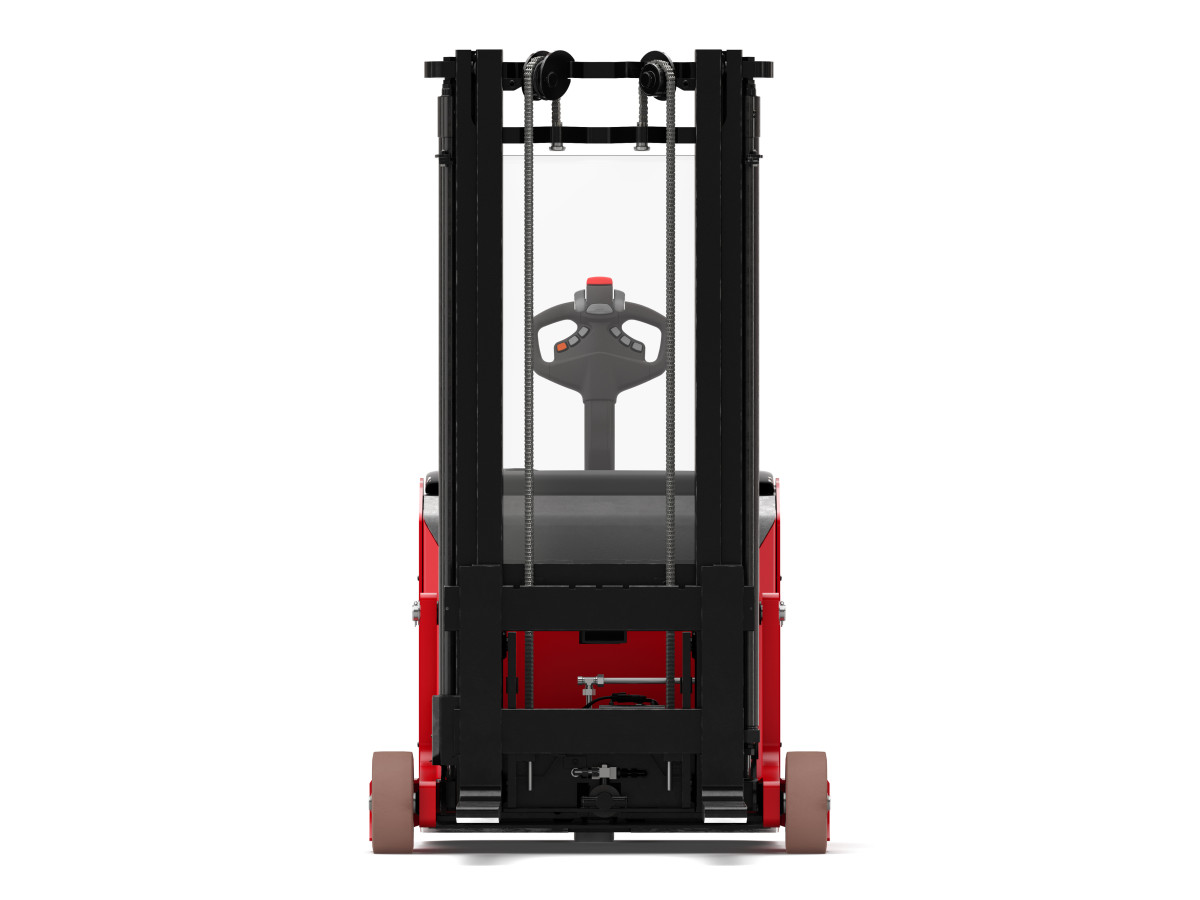

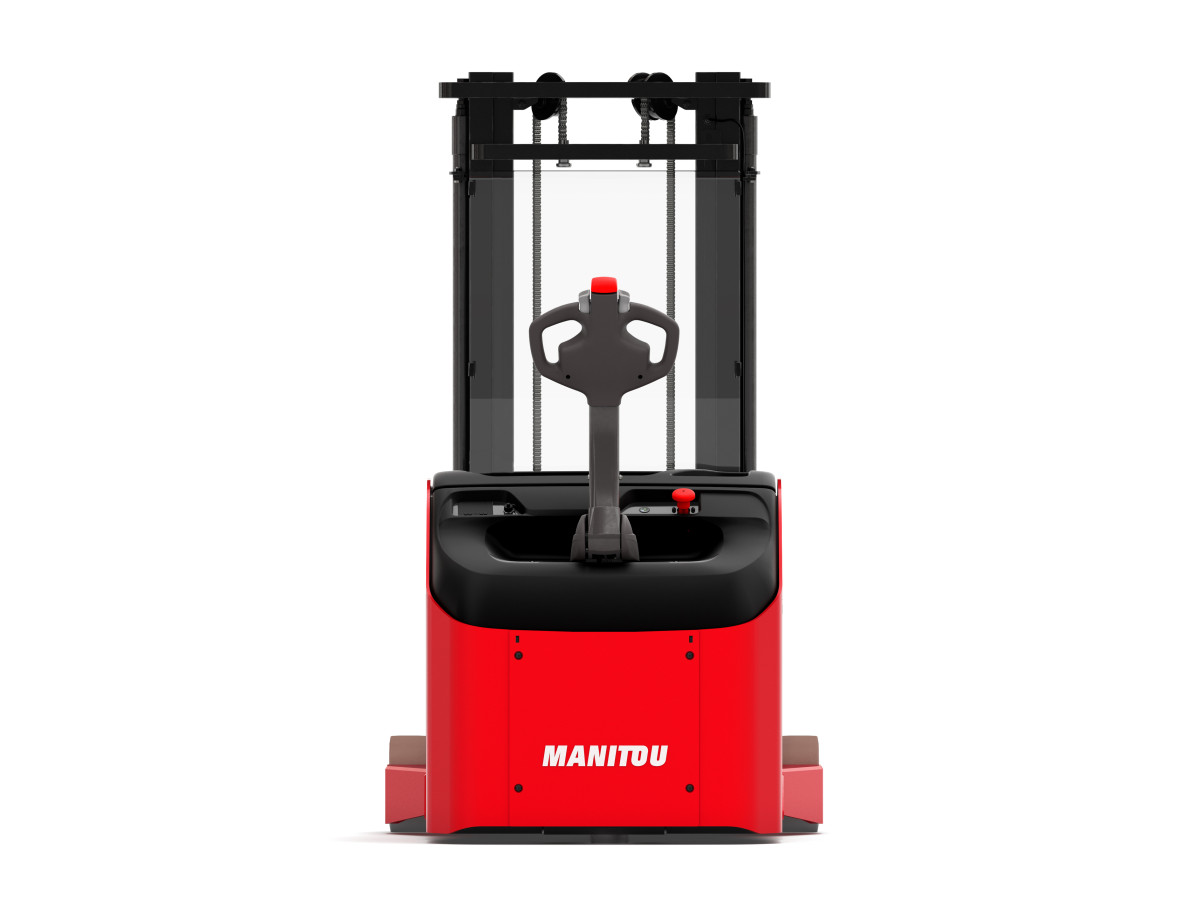

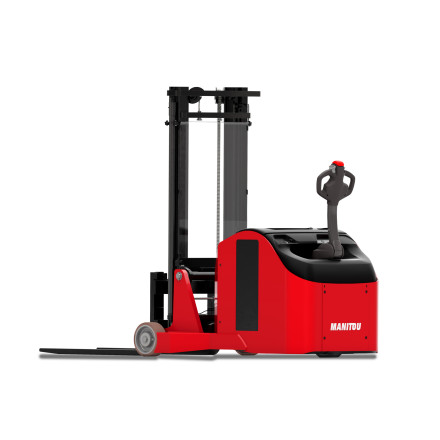

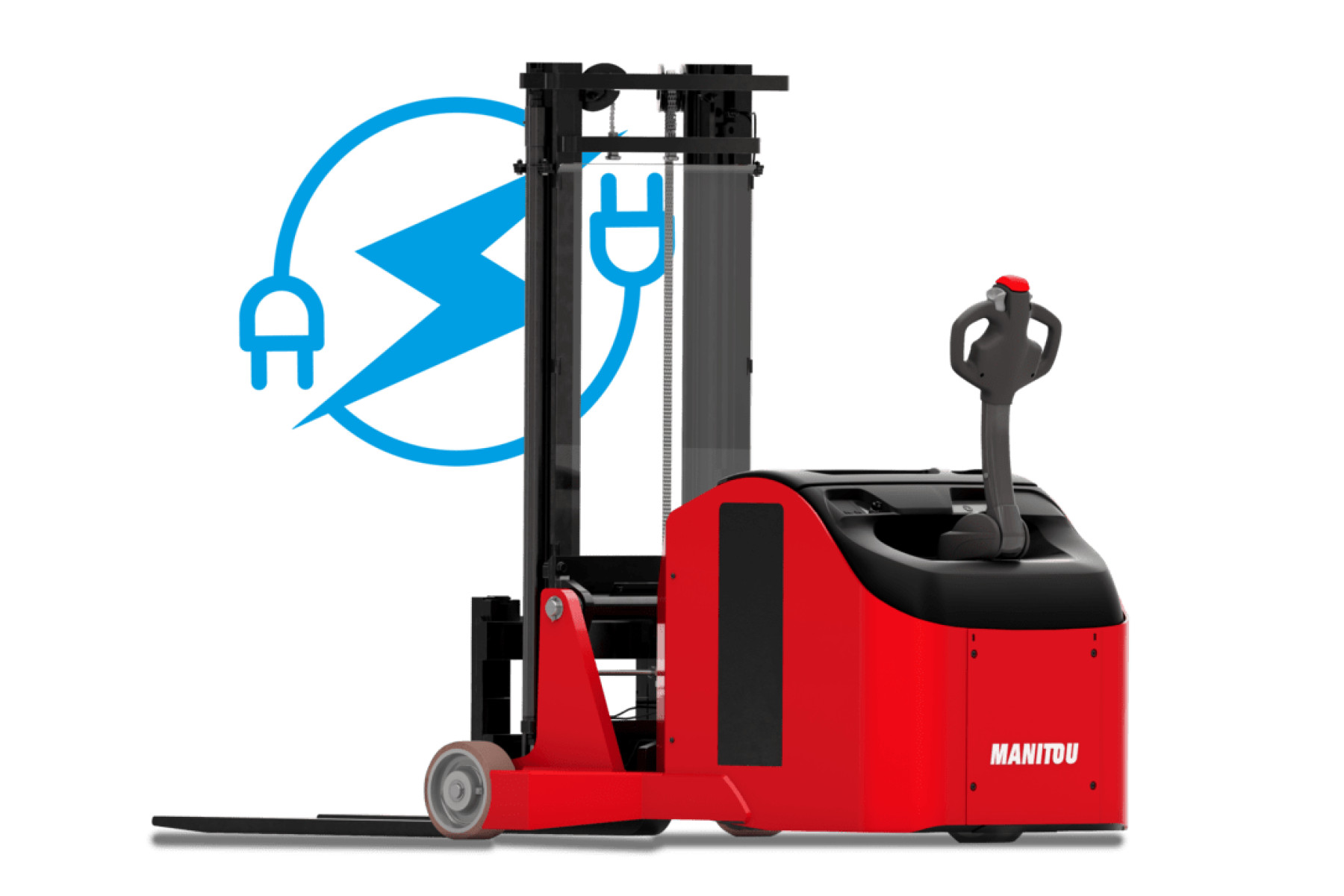

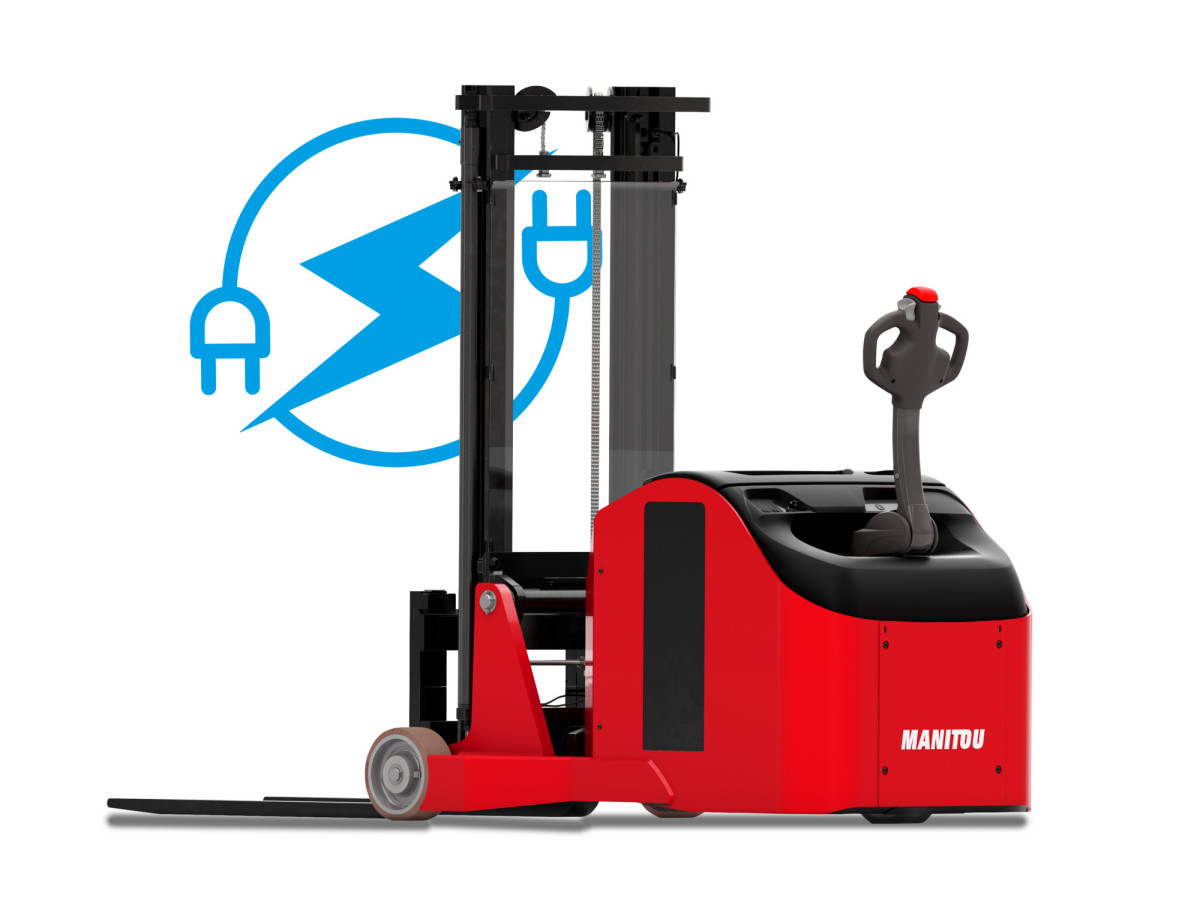

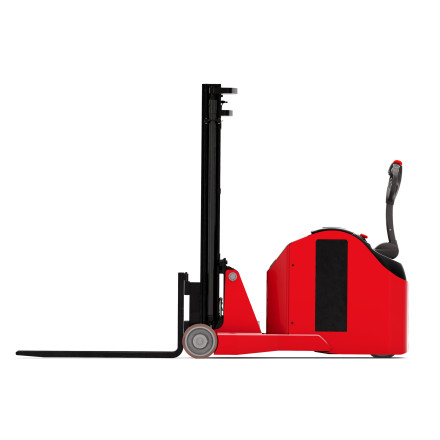

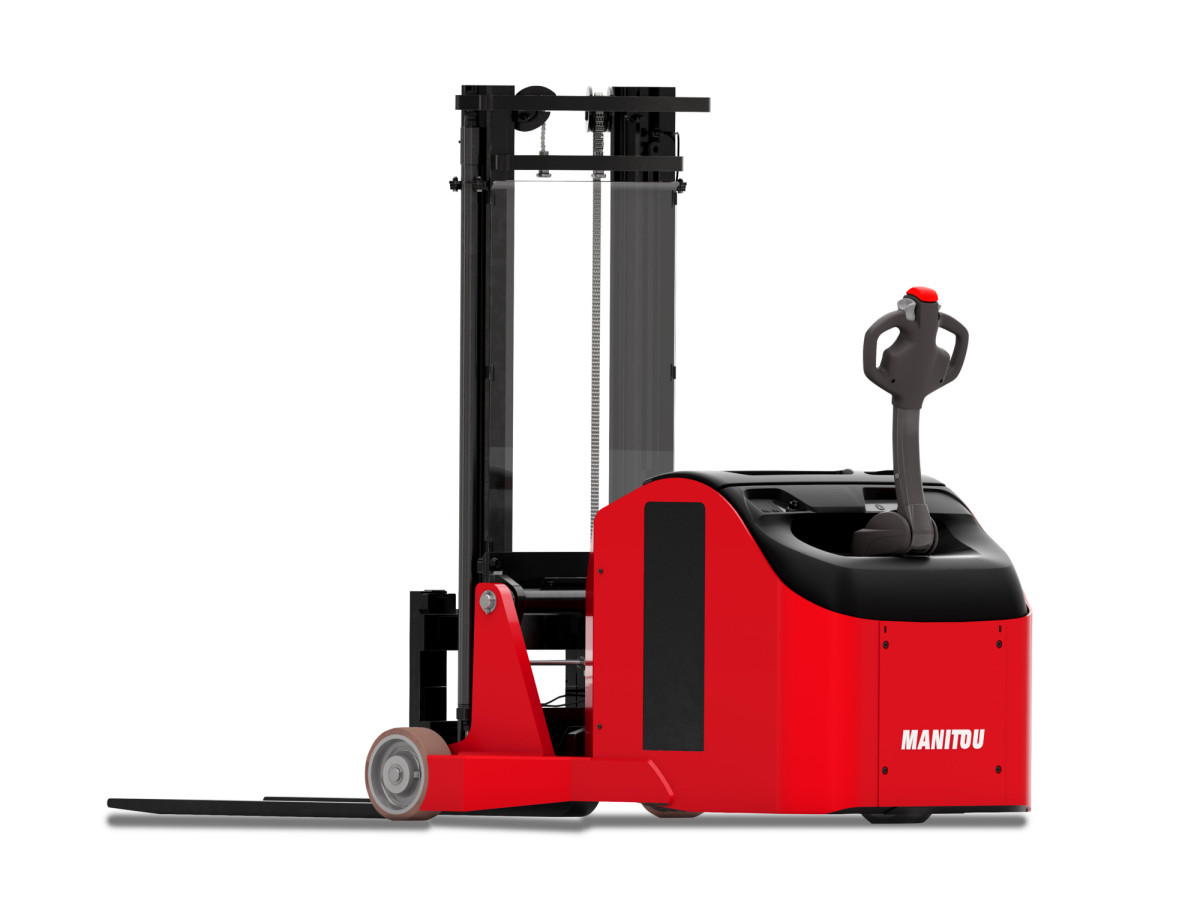

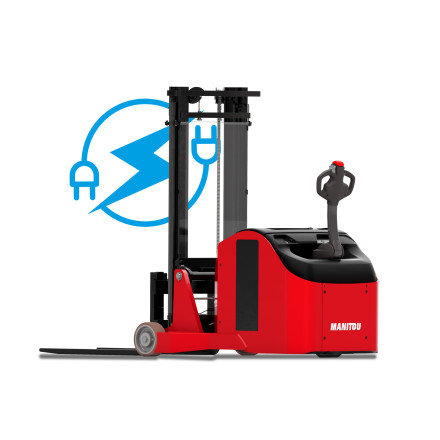

Warehousing ES-C 720
Request a Quote Download BrochureKey Information
Load center of gravity
500 mm
Wheelbase
1 470 mm
Distance from Load backrest to center of rear axle
157 mm
Product Specifications for ES-C 720
- TECHNICAL CHARACTERISTICS
- Model NameES-C 720
- Power sourceElectrical - Lead
- Operator typePedestrian
- Load center of gravity500 mm
- Wheelbase1 470 mm
- Distance from Load backrest to center of rear axle157 mm
- Max. capacity2 000 kg
- WEIGHT
- Service weight2 600 kg
- Weight on front axle (laden)610 kg
- Weight on front axle (Unladen)1 500 kg
- Weight on rear axle (laden)3 985 kg
- Weight on rear axle (Unladen)1 100 kg
- WEIGHT AND DIMENSIONS
- Height tiller min.1 005 mm
- Height tiller max.1 405 mm
- Fork height in low position45 mm
- Overall length2 960 mm
- Length to face of forks1 810 mm
- Overall width1 120 mm
- Forks section40 mm
- Forks width120 mm
- Forks length1 150 mm
- Fork carriage width750 mm
- Ground clearance below mast31 mm
- Ground clearance at centre of wheelbase62 mm
- Aisle Width for pallets 1000 x 1200 crossways3 294 mm
- Aisle width for 800 x 1200 pallet lengthways3 402 mm
- Turning radius1 826 mm
- WHEELS
- Tires typePolyurethane cushion
- Size of drive wheels254x100
- Size of load wheels250x100
- Number of load wheels2
- Number of front wheels1
- Number of rear wheels2
- Number of drive wheels1
- Rear wheel gauge1 003 mm
- MASTS
- Max. lifting height5 415 mm
- PERFORMANCES
- Travel speed (laden)6 km/h
- Travel speed (unladen)6 km/h
- Lifting speed (laden)0,11 m/s
- Lifting speed (unladen)0,2 m/s
- Lowering speed (laden)0,22 m/s
- Lowering speed (unladen)0,21 m/s
- Max Gradeability (laden)5 %
- Max Gradeability (unladen)8 %
- Service brakeElectro magnetic
- ENGINE
- Drive motor rating S2 60 min2 kW
- Lift motor rating at S3 15%4 kW
- NOISE AND VIBRATION
- Sound level at the driver's ear according to DIN 12 05365 dB
- BATTERY
- Battery capacity315 Ah
- Battery voltage24 V
- Battery weight (+/- 5%)275 kg
- Battery according to DIN 43531/35/36 A, B, CDIN 43535-B
