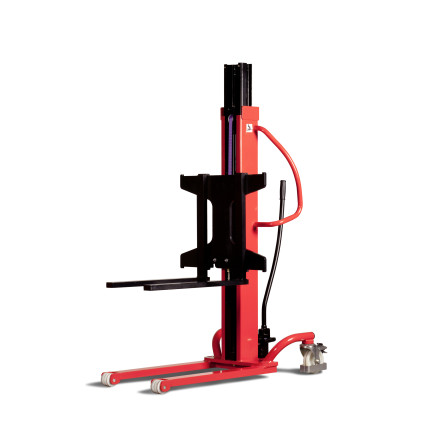

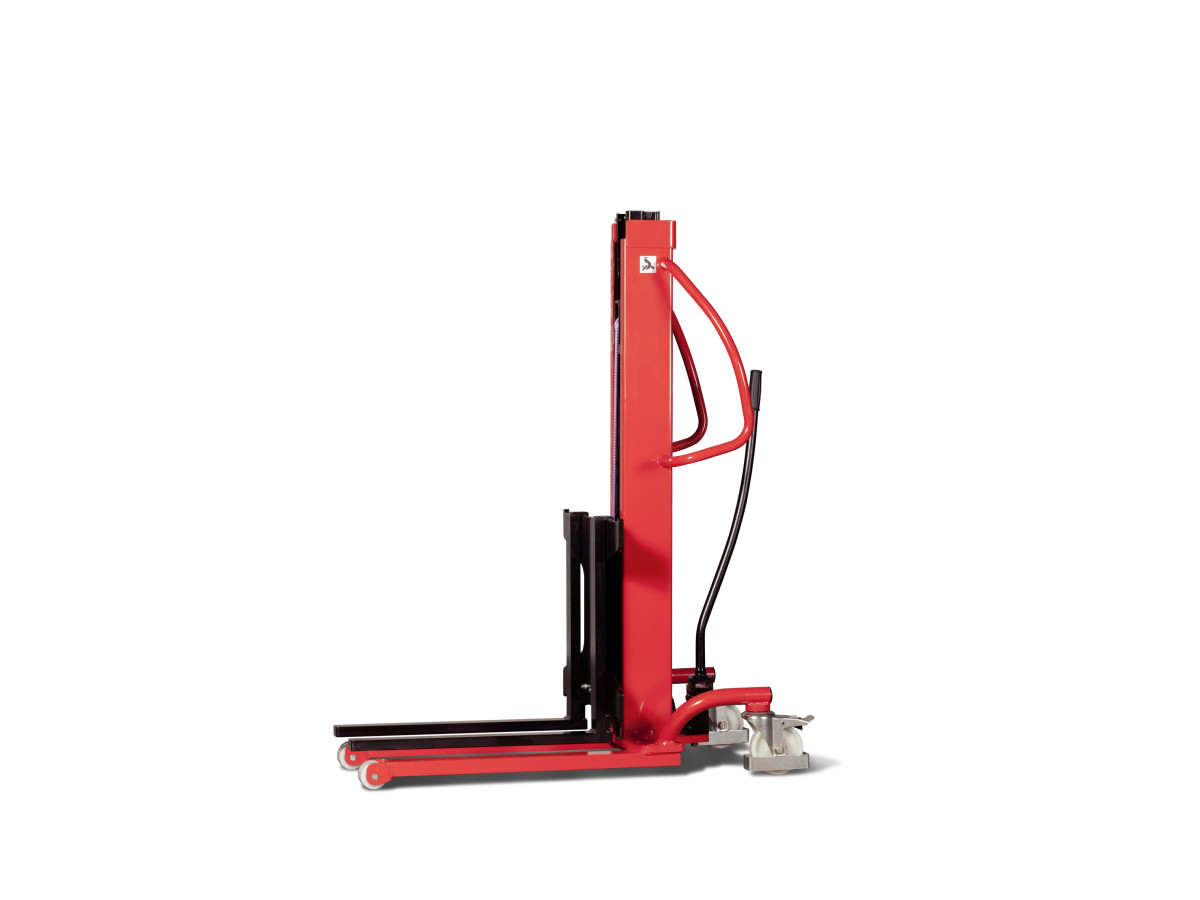

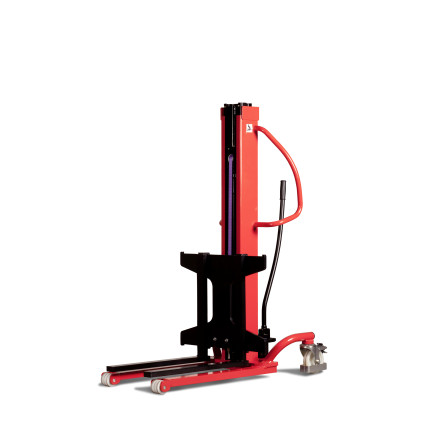

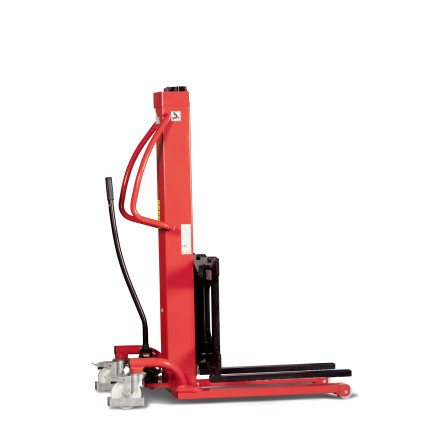

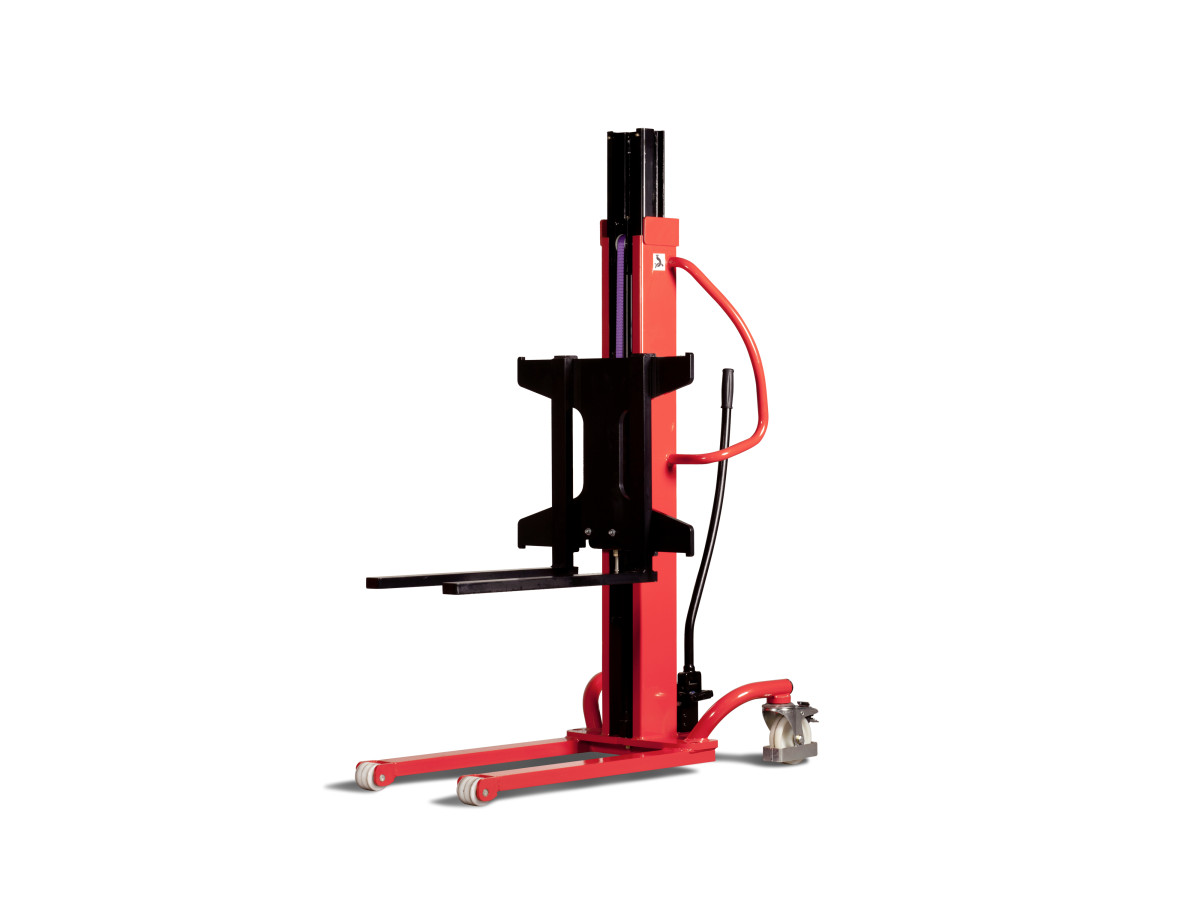

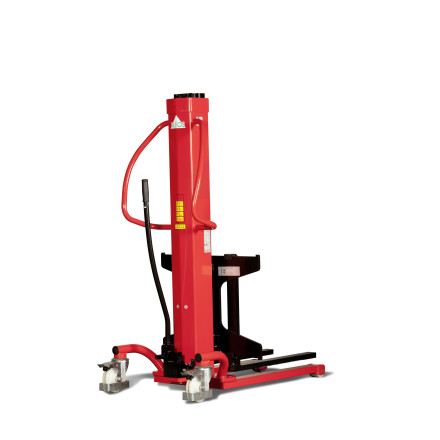

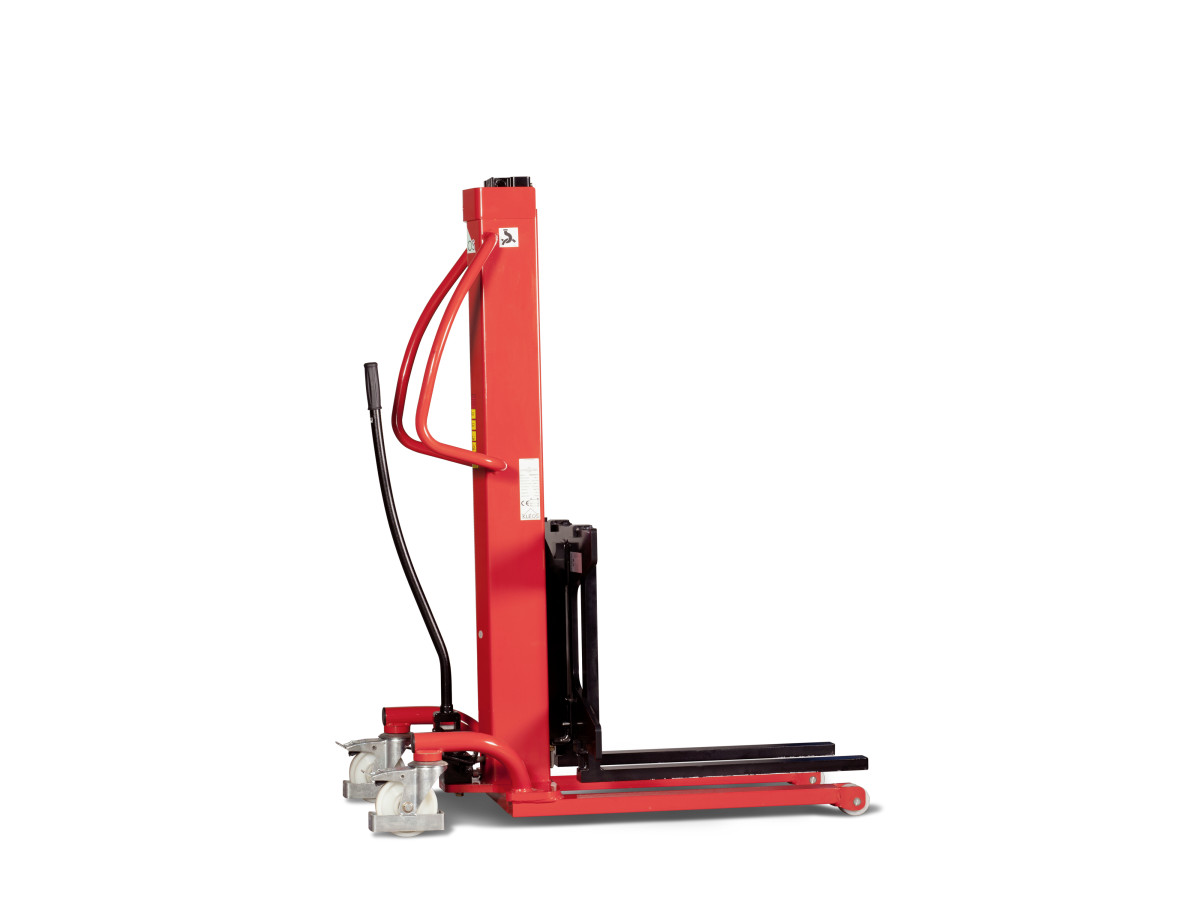

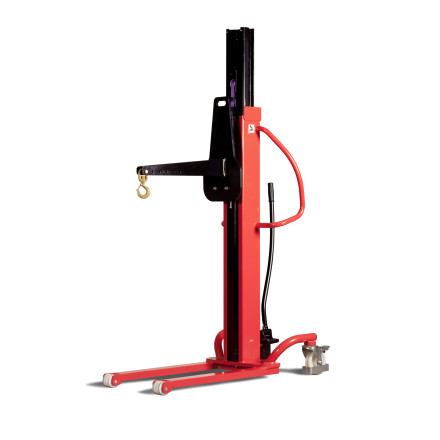

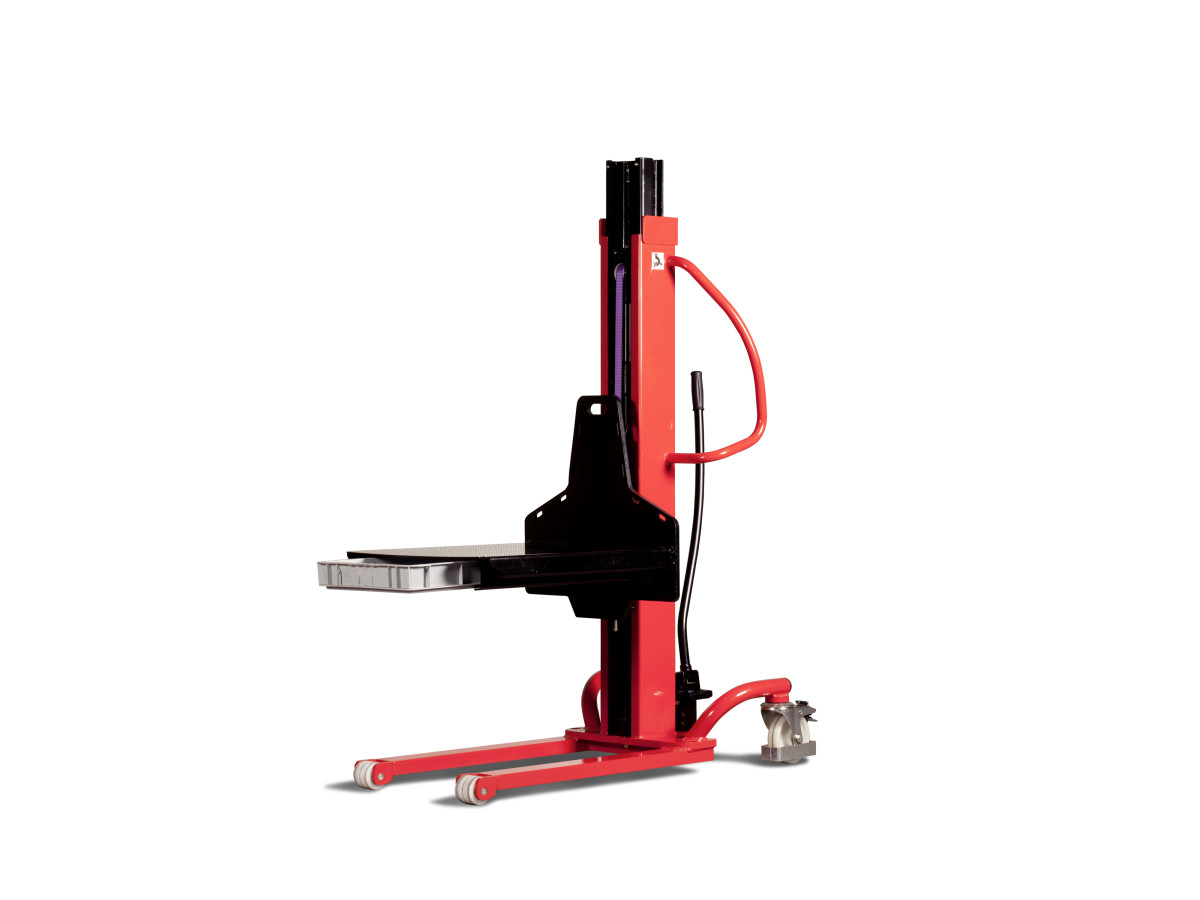

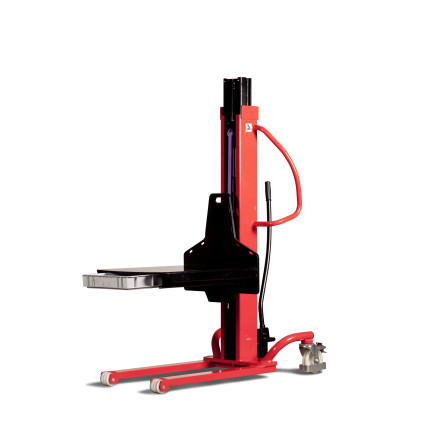

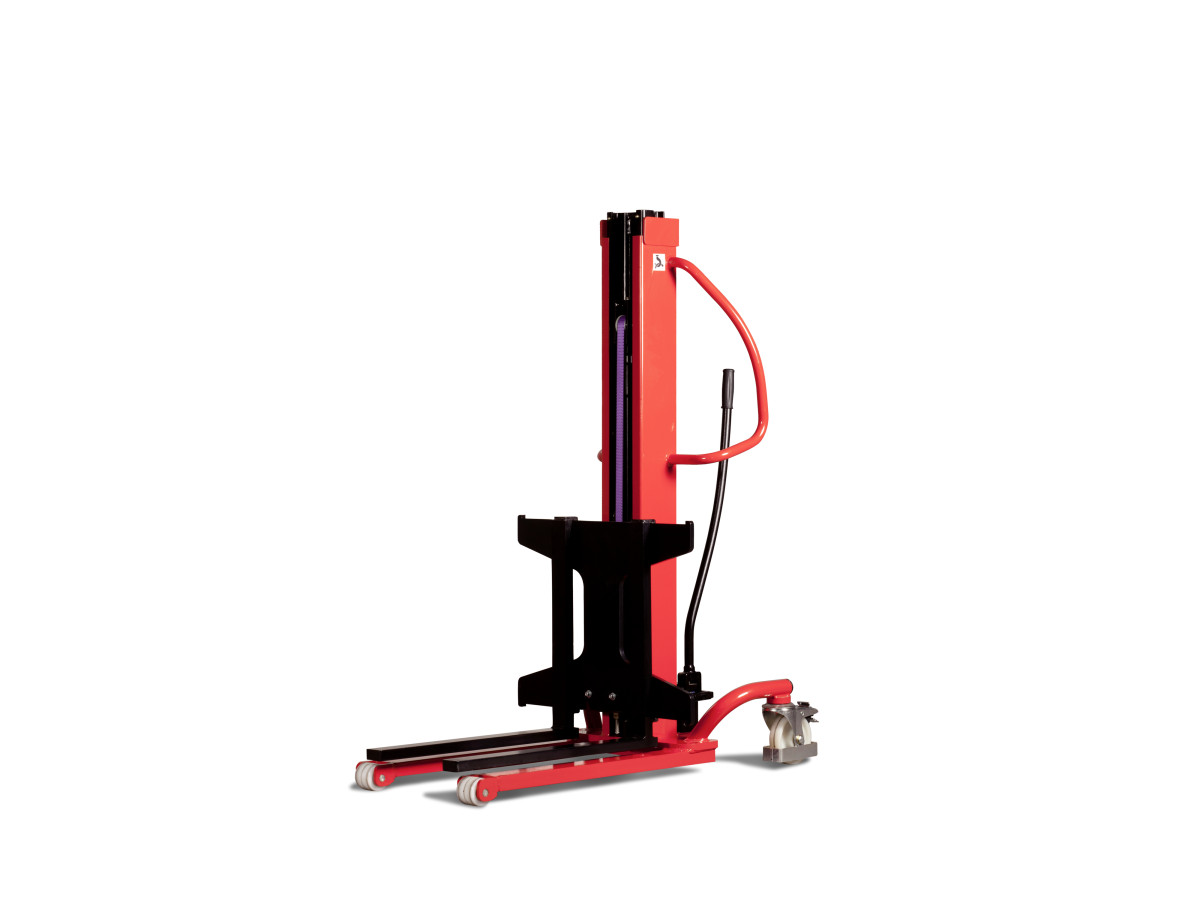

Warehousing Kleos HM 500 D18
Request a Quote Download BrochureKey Information
Load center of gravity
250 mm
Max. capacity
500 kg
Lifting speed (laden)
0,1 m/s
Product Specifications for Kleos HM 500 D18
- TECHNICAL CHARACTERISTICS
- Model NameKleos HM 500 D18
- Power sourceManual
- Operator typePedestrian
- Load center of gravity250 mm
- Max. capacity500 kg
- WEIGHT
- Overall weight without tools178 kg
- WEIGHT AND DIMENSIONS
- Overall length1 300 mm
- Overall length without tools1 300 mm
- Length to face of forks575 mm
- Overall width710 mm
- Forks spread519 mm
- Ground clearance at centre of wheelbase35 mm
- WHEELS
- Tires typeNylon
- Dimensions of front wheels2x (75x65)
- Dimensions of rear wheels2x (150x50)
- MASTS
- Mast lowered height1 600 mm
- Max. lifting height1 780 mm
- Mast extended height1 780 mm
- PERFORMANCES
- Lifting speed (laden)0,1 m/s
- Lifting speed (unladen)0,1 m/s
- Lowering speed (laden)0,1 m/s
- Lowering speed (unladen)0,1 m/s
- TRANSMISSION
- Parking brakeMecanic
