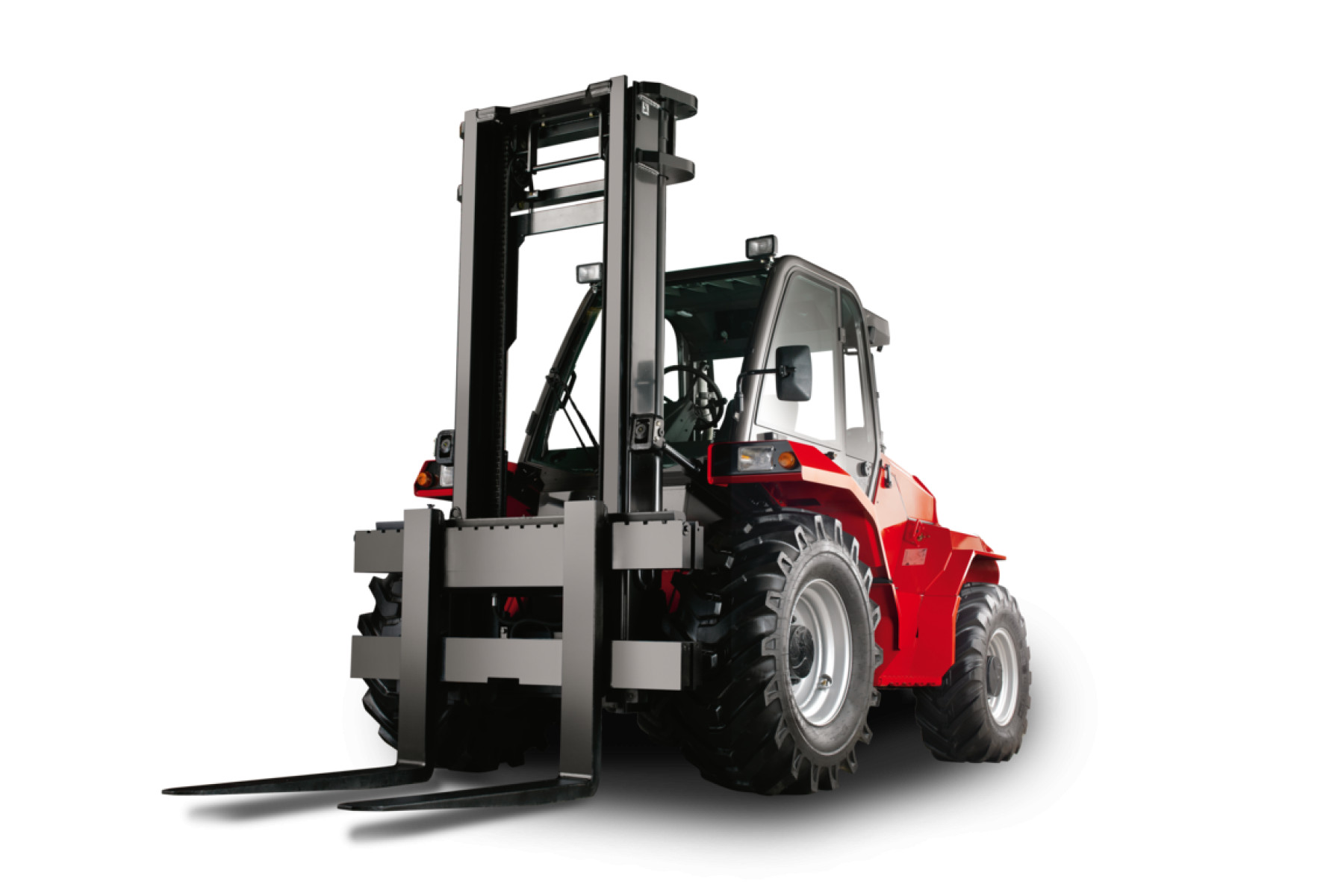

Manitou M-X 50-2

Forklift trucks M-X 50-2

Request a Quote Download Brochure

Key Information

Load center of gravity

600 mm

Wheelbase

2 120 mm

Load distance, centre of drive axle to fork

772 mm

Contact Our Experts

Monday to Friday 8am-4:30pm (CAT)

Product Specifications for M-X 50-2

  • TECHNICAL CHARACTERISTICS
    • Model NameM-X 50-2
    • Power sourceDiesel
    • Operator typeSeated
    • Load center of gravity600 mm
    • Wheelbase2 120 mm
    • Load distance, centre of drive axle to fork772 mm
    • Max. capacity5 000 kg
  • WEIGHT
    • Service weight7 480 kg
    • Weight on front axle (laden)10 895 kg
    • Weight on front axle (Unladen)2 645 kg
    • Weight on rear axle (laden)1 930 kg
    • Weight on rear axle (Unladen)5 180 kg
  • WEIGHT AND DIMENSIONS
    • Height of overhead guard (cabin)2 420 mm
    • Overall length4 955 mm
    • Length to face of forks3 755 mm
    • Overall width2 060 mm
    • Fork carriage ISO 2328 (class/form) A/B4A
    • Fork carriage width1 670 mm
    • Ground clearance below mast265 mm
    • Ground clearance at centre of wheelbase365 mm
    • Turning radius3 395 mm
    • Internal turning radius (over tyres)200 mm
  • WHEELS
    • Tires typePneumatic
    • Dimensions of rear wheels10R17,5 134/132M G291
    • Number of front wheels2
    • Number of rear wheels2
    • Number of drive wheels2
    • Front wheel gauge1 620 mm
  • MASTS
    • Max. lifting height6 000 mm
  • PERFORMANCES
    • Travel speed (laden)22,8 km/h
    • Lifting speed (laden)0,4 m/s
    • Lifting speed (unladen)0,4 m/s
    • Lowering speed (laden)0,5 m/s
    • Lowering speed (unladen)0,4 m/s
    • Service brakeHydraulic
  • ENGINE
    • Engine brandPerkins
    • Engine model1104D-44T NL38894
    • Engine normStage IIIA
    • Engine power (Hp)95 Hp
    • Engine power (kW)70 kW
    • Rated speed2 360 rpm
  • TRANSMISSION
    • Drawbar pull (Laden)5 685 daN
    • Drawbar pull (Unladen)3 665 daN
  • HYDRAULICS
    • Oil flow rate for attachments87 l/min
    • Working hydraulic pressure for attachments210 bar
