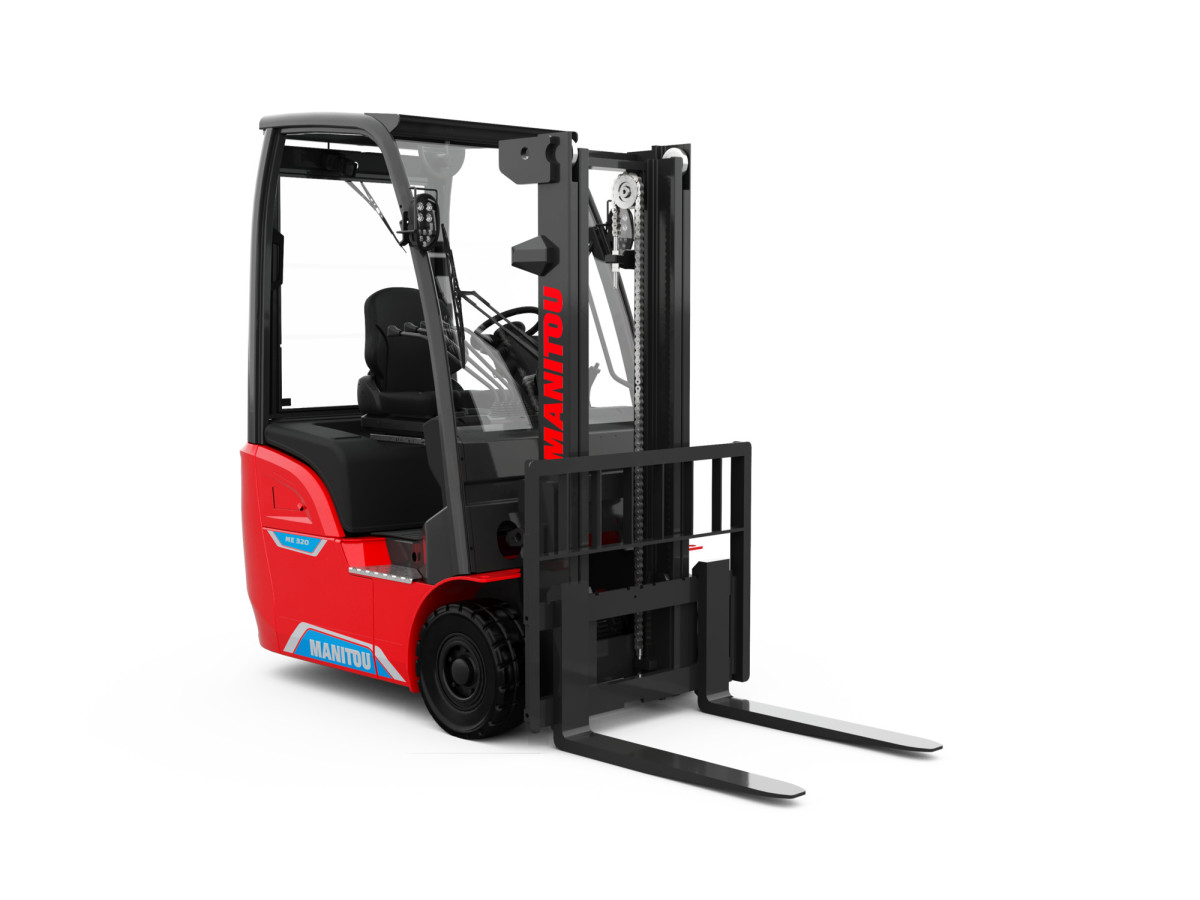

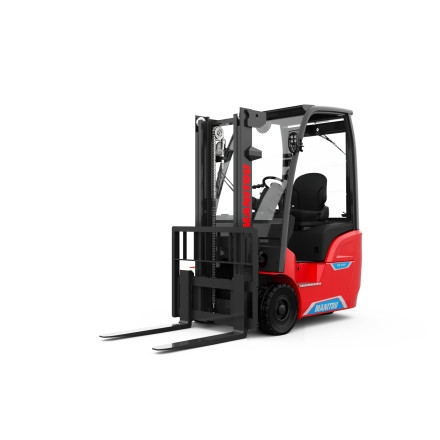

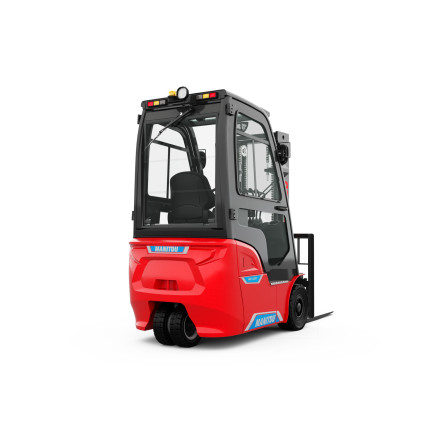

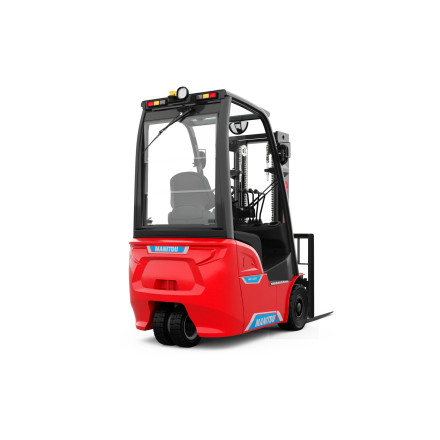

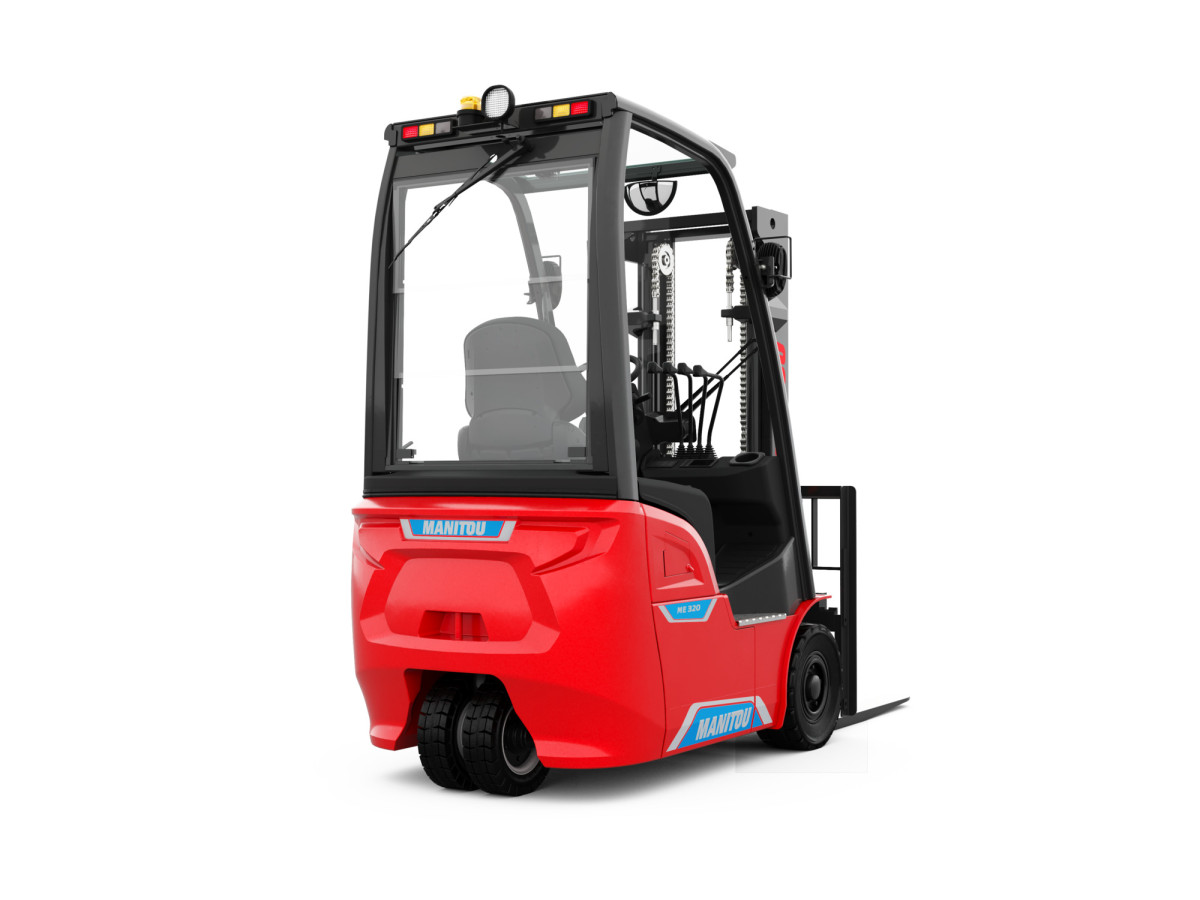

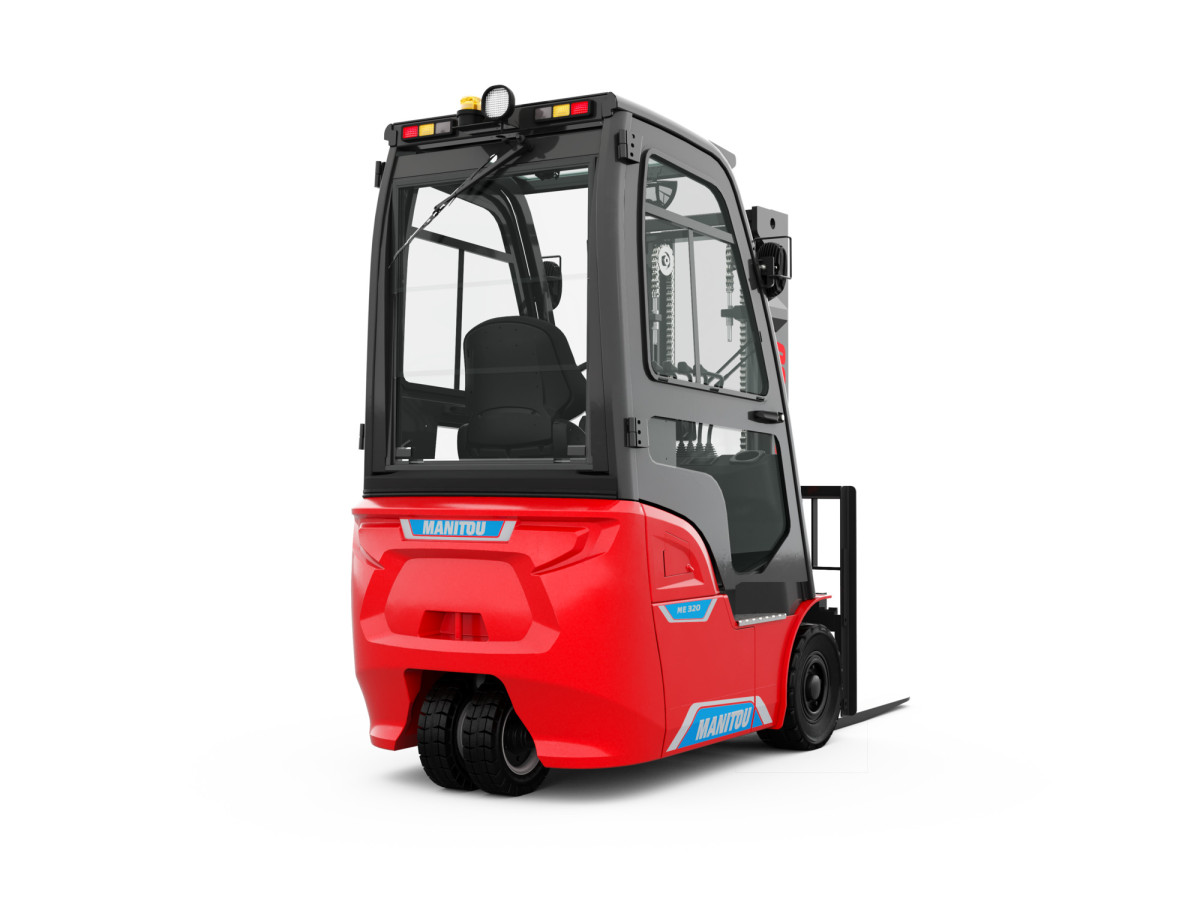

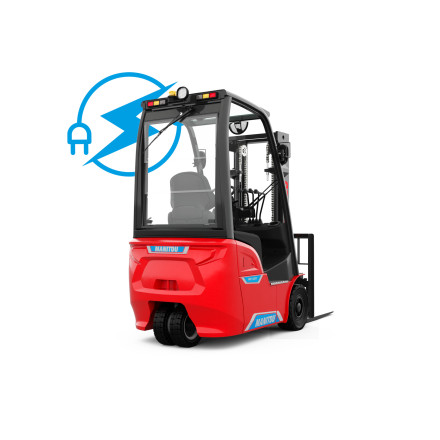

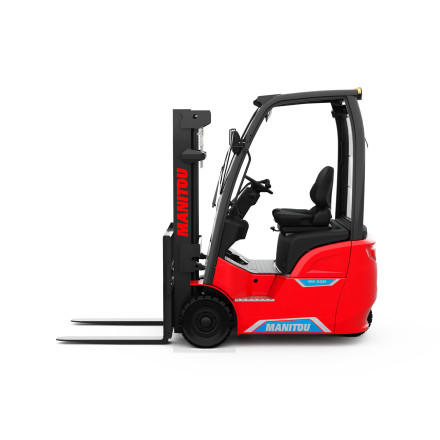

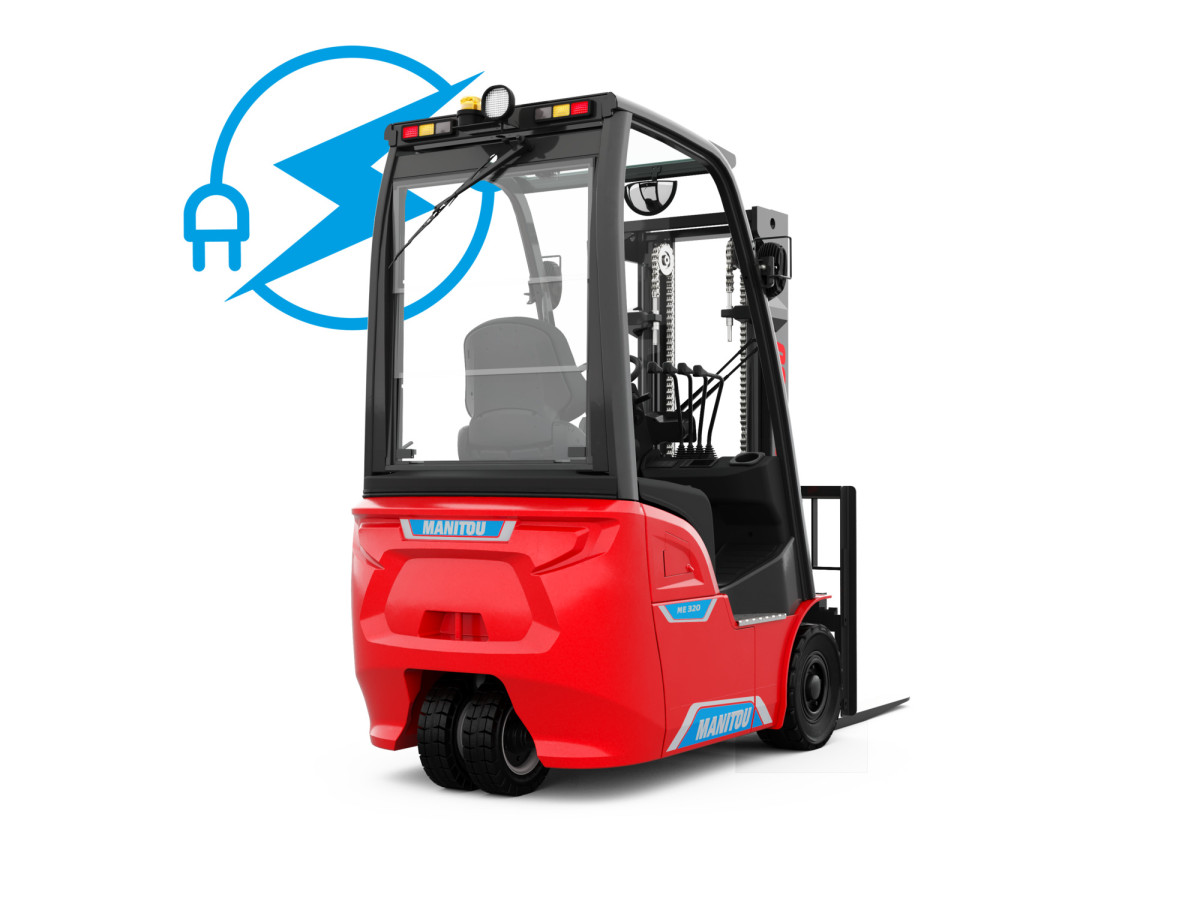

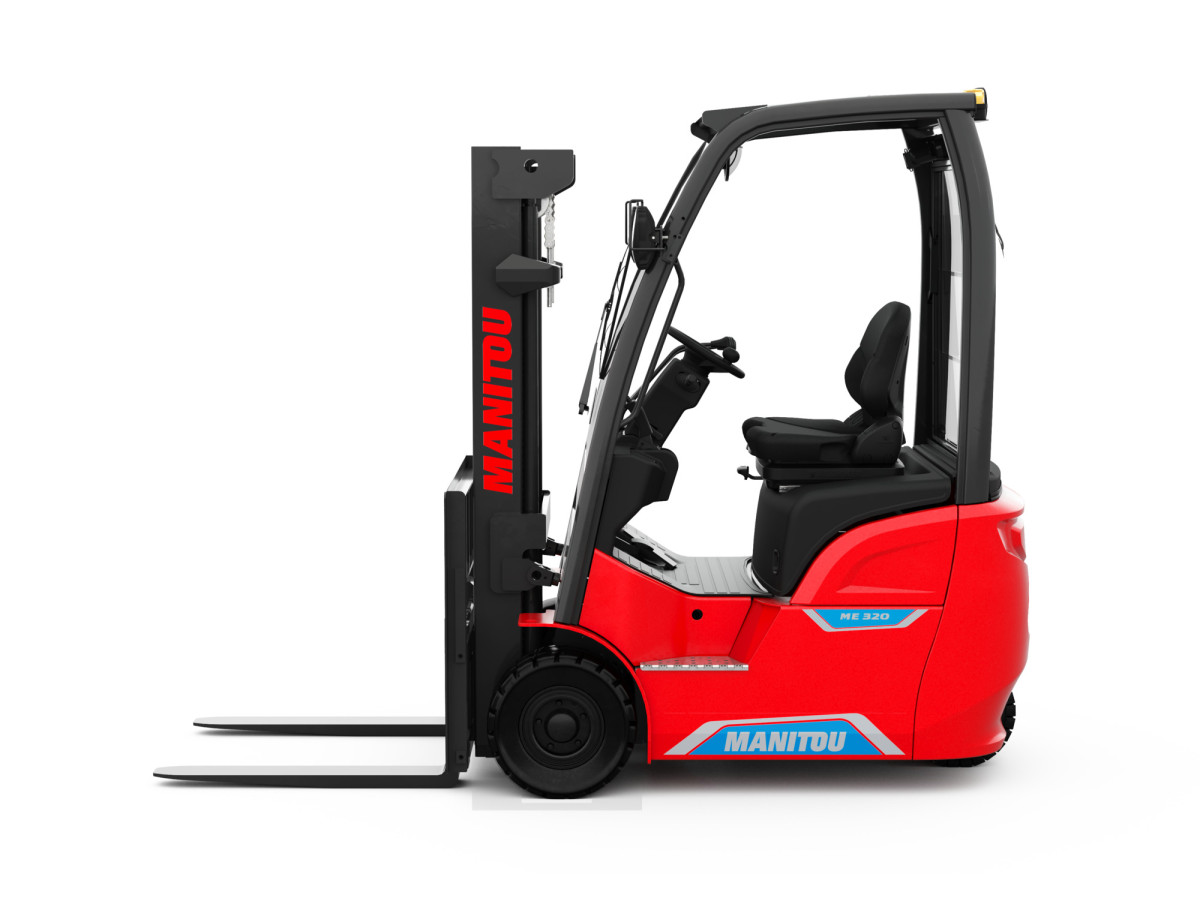

Forklift trucks ME 320 LIFT
Request a Quote Download BrochureKey Information
Load center of gravity
500 mm
Wheelbase
1 407 mm
Load distance, centre of drive axle to fork
364,5 mm
Product Specifications for ME 320 LIFT
- TECHNICAL CHARACTERISTICS
- Model NameME 320 LIFT
- Power sourceElectrical - Lithium
- Operator typeSeated
- Load center of gravity500 mm
- Wheelbase1 407 mm
- Load distance, centre of drive axle to fork364,5 mm
- Max. capacity2 000 kg
- WEIGHT
- Standard mast reference of the machineFVD 30
- Service weight3 200 kg
- Weight on front axle (laden)4 580 kg
- Weight on front axle (Unladen)1 365 kg
- Weight on rear axle (laden)620 kg
- Weight on rear axle (Unladen)1 835 kg
- WEIGHT AND DIMENSIONS
- Height of overhead guard (cabin)2 158 mm
- Seat height/stand height1 120 mm
- Height of towing bar (coupling height)525 mm
- Overall length2 907 mm
- Length to face of forks1 987 mm
- Overall width1 153 mm
- Forks width40 mm
- Forks length100 mm
- Fork carriage ISO 2328 (class/form) A/B2A
- Fork carriage width1 000 mm
- Ground clearance below mast100 mm
- Ground clearance at centre of wheelbase110 mm
- Aisle Width for pallets 1000 x 1200 crossways3 316 mm
- Aisle width for 800 x 1200 pallet lengthways3 440 mm
- Turning radius1 625 mm
- WHEELS
- Tires typeSolid tires
- Dimensions of front wheels200/50-10
- Dimensions of rear wheels15x4,5-8
- Number of front wheels2
- Number of rear wheels1
- Number of drive wheels2
- Front wheel gauge932 mm
- Rear wheel gauge178 mm
- MASTS
- Max. lifting height6 500 mm
- PERFORMANCES
- Travel speed (laden)15 km/h
- Travel speed (unladen)15 km/h
- Lifting speed (laden)0,4 m/s
- Lifting speed (unladen)0,55 m/s
- Lowering speed (laden)0,47 m/s
- Lowering speed (unladen)0,42 m/s
- Gradeability (laden)5 %
- Gradeability (unladen)9 %
- Acceleration time (laden)4,9 s
- Acceleration time (unladen)4,5 s
- Service brakeHydraulic
- Energy consumption according to VDI cycle (kWh/h)4,6 kWh/h
- ENGINE
- Drive motor rating S2 60 min2,5 kW
- Lift motor rating at S3 15%11 kW
- TRANSMISSION
- Drawbar pull (Laden)305 daN
- Drawbar pull (Unladen)370 daN
- HYDRAULICS
- Oil flow rate for attachments30 l/min
- Working hydraulic pressure for attachments210 bar
- NOISE AND VIBRATION
- Sound level at the driver's ear according to DIN 12 05370 dB
- BATTERY
- Battery capacity304 Ah
- Battery voltage76,8 V
- Battery weight (+/- 5%)300 kg
- Battery according to DIN 43531/35/36 A, B, CLithium
