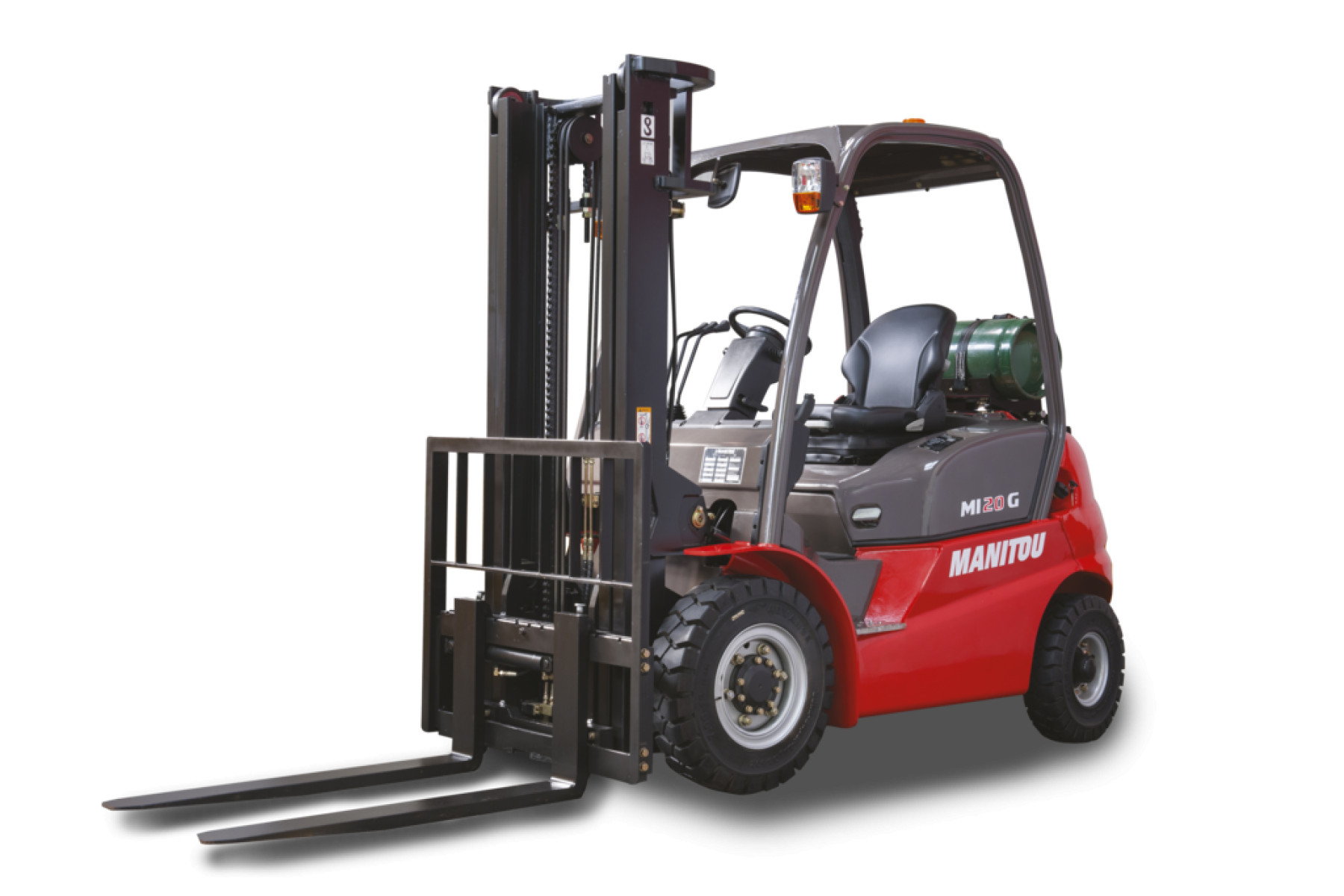

Forklift trucks MI-X 20 G
Request a Quote Download BrochureKey Information
Load center of gravity
500 mm
Wheelbase
1 600 mm
Load distance, centre of drive axle to fork
465 mm
Product Specifications for MI-X 20 G
- TECHNICAL CHARACTERISTICS
- Model NameMI-X 20 G
- Power sourceLPG
- Operator typeSeated
- Load center of gravity500 mm
- Wheelbase1 600 mm
- Load distance, centre of drive axle to fork465 mm
- Max. capacity2 000 kg
- WEIGHT
- Service weight3 620 kg
- Weight on front axle (laden)4 930 kg
- Weight on front axle (Unladen)1 720 kg
- Weight on rear axle (laden)690 kg
- Weight on rear axle (Unladen)1 900 kg
- WEIGHT AND DIMENSIONS
- Height of overhead guard (cabin)2 115 mm
- Seat height/stand height1 190 mm
- Height of towing bar (coupling height)355 mm
- Overall length3 615 mm
- Length to face of forks2 465 mm
- Overall width1 155 mm
- Overall width - Single wheels1 155 mm
- Forks section40 mm
- Forks width122 mm
- Forks length1 150 mm
- Fork carriage ISO 2328 (class/form) A/B2A
- Fork carriage width1 038 mm
- Ground clearance below mast115 mm
- Ground clearance at centre of wheelbase175 mm
- Aisle Width for pallets 1000 x 1200 crossways3 865 mm
- Aisle width for 800 x 1200 pallet lengthways4 065 mm
- Turning radius2 200 mm
- Internal turning radius (over tyres)145 mm
- WHEELS
- Tires typeSolid tires
- Dimensions of front wheels7.00-12 12
- Dimensions of rear wheels6.00-9 10
- Number of front wheels2
- Number of rear wheels2
- Number of drive wheels2
- Front wheel gauge965 mm
- Rear wheel gauge973 mm
- MASTS
- Max. lifting height6 500 mm
- PERFORMANCES
- Travel speed (laden)18,8 km/h
- Travel speed (unladen)19,4 km/h
- Lifting speed (laden)0,47 m/s
- Lifting speed (unladen)0,55 m/s
- Lowering speed (laden)0,48 m/s
- Lowering speed (unladen)0,5 m/s
- Energy consumption according to VDI cycle (Gas)6,3 kg CO2/h
- Gradeability (laden)20 %
- Gradeability (unladen)20 %
- Service brakeHydraulic
- ENGINE
- Engine brandGCT (ex-Nissan)
- Engine modelK25
- Engine power (Hp)48 Hp
- Engine power (kW)35 kW
- Rated speed2 400 Hz
- Capacity of cylinders2 488 cm³
- Number of cylinders4
- TRANSMISSION
- Transmission typeTorque converter
- Drawbar pull (Laden)1 680 daN
- Drawbar pull (Unladen)1 040 daN
- HYDRAULICS
- Oil flow rate for attachments72 l/min
- Working hydraulic pressure for attachments160 bar
- NOISE AND VIBRATION
- Sound level at the driver's ear according to DIN 12 05380 dB
- Measured/guaranteed mean noise level at the ear of the operator80 dB
