Forklift trucks MI-X 35 D
Request a Quote Download BrochureKey Information
Load center of gravity
500 mm
Wheelbase
1 700 mm
Load distance, centre of drive axle to fork
485 mm
Product Specifications for MI-X 35 D
- TECHNICAL CHARACTERISTICS
- Model NameMI-X 35 D
- Power sourceDiesel
- Operator typeSeated
- Load center of gravity500 mm
- Wheelbase1 700 mm
- Load distance, centre of drive axle to fork485 mm
- Max. capacity3 500 kg
- WEIGHT
- Service weight4 860 kg
- Weight on front axle (laden)7 360 kg
- Weight on front axle (Unladen)1 825 kg
- Weight on rear axle (laden)1 000 kg
- Weight on rear axle (Unladen)3 035 kg
- WEIGHT AND DIMENSIONS
- Height of overhead guard (cabin)2 130 mm
- Seat height/stand height1 215 mm
- Height of towing bar (coupling height)360 mm
- Overall length3 935 mm
- Length to face of forks2 785 mm
- Overall width1 225 mm
- Overall width - Single wheels1 225 mm
- Forks section50 mm
- Forks width122 mm
- Forks length1 150 mm
- Fork carriage ISO 2328 (class/form) A/B3A
- Fork carriage width1 100 mm
- Ground clearance below mast130 mm
- Ground clearance at centre of wheelbase200 mm
- Aisle Width for pallets 1000 x 1200 crossways4 195 mm
- Aisle width for 800 x 1200 pallet lengthways4 395 mm
- Internal turning radius (over tyres)160 mm
- WHEELS
- Tires typeSolid tires
- Dimensions of front wheels28-9-15 12
- Dimensions of rear wheels6.50-10 10
- Number of front wheels2
- Number of rear wheels2
- Number of drive wheels2
- Front wheel gauge1 005 mm
- Rear wheel gauge975 mm
- MASTS
- Max. lifting height6 500 mm
- PERFORMANCES
- Travel speed (laden)18 km/h
- Travel speed (unladen)18,5 km/h
- Lifting speed (laden)0,39 m/s
- Lifting speed (unladen)0,4 m/s
- Lowering speed (laden)0,4 m/s
- Lowering speed (unladen)0,35 m/s
- Gradeability (laden)18 %
- Gradeability (unladen)20 %
- Service brakeHydraulic
- ENGINE
- Engine brandYanmar
- Engine model4TNV94L-BXPHZ
- Engine normStage IIIA
- Engine power (Hp)48 Hp
- Engine power (kW)35 kW
- Rated speed2 400 rpm
- Capacity of cylinders3 054 cm³
- Number of cylinders4
- TRANSMISSION
- Transmission typeTorque converter
- Drawbar pull (Laden)1 830 daN
- Drawbar pull (Unladen)1 520 daN
- HYDRAULICS
- Oil flow rate for attachments69 l/min
- Working hydraulic pressure for attachments160 bar
- NOISE AND VIBRATION
- Sound level at the driver's ear according to DIN 12 05384 dB
- Measured/guaranteed mean noise level at the ear of the operator84 dB
Discover Similar Equipment
Forklift trucks
MI-X 30 D
Load center of gravity
500 mm
Wheelbase
1 700 mm
Load distance, centre of drive axle to fork
480 mm
ExploreForklift trucks
MI-X 25 G
Load center of gravity
500 mm
Wheelbase
1 600 mm
Load distance, centre of drive axle to fork
465 mm
ExploreForklift trucks
MI-X 45 D FOB
Load center of gravity
500 mm
Wheelbase
2 000 mm
Load distance, centre of drive axle to fork
550 mm
ExploreForklift trucks

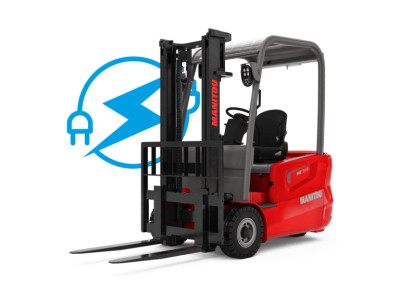

ME 316 FOB
