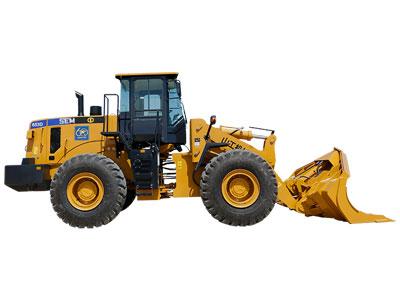

SEM Wheel loaders 653D
Request a QuoteKey Information
Rated Payload
5,000 kg
Operating weight in operation
16,640kg
Bucket Capacity
2.6-5.5m³
Overview
The SEM653D is a 5-ton wheel loader designed for worksites that require productivity, durability and easy maintenance. With a rated payload of 5,000 kg, an operating weight of 16,640 kg with standard bucket and a bucket capacity ranging from 2.6 to 5.5 m³, it is suited for demanding applications in construction, quarrying, ports, agriculture, coal handling, concrete production, roadwork and infrastructure projects.
The machine combines a low-speed engine, E-fan and efficient hydraulic system to help optimize fuel consumption and productivity. Its reinforced structure, reliable drivetrain, comfortable cab and service-friendly layout make it a strong choice for operators looking for a simple, robust and productive machine for daily operations.
Key Features
- Engine
- Efficient Hydraulic System
- Operator Station
- Drivetrain
- Cooling System
- Solid Structure
- Serviceability
- Safety
- Machine Applications
Engine
Low-speed engine and E-fan help improve fuel consumption. 3-stage air cleaner with 93% efficiency pre-cleaner reduces early wear; high-efficiency fuel filter helps keep the engine in good condition. Cat technology damping mounts reduce vibration-related failures.
Efficient Hydraulic System
Excellent modulation performance with mechanically controlled implement valve enables more accurate operation.Full hydraulic load-sensing steering and flow-sharing system save fuel and increase productivity; hydraulic cycle time is only 9.3 s. World-class pump and Cat technology line routing deliver better reliability.
Operator Station
Mold-formed cab with full trim design and additional HVAC vents improves operator comfort. First-class premium suspension seat with adjustable armrest, safety belt, up/down and forward/reverse adjustment. Cat technology damping mounts reduce vibration-related failures. Sliding window and fresh-air inlet system improve the cab environment.
Drivetrain
SEM in-house countershaft transmission delivers reliable and high-efficiency performance, with improved core components. Single-stage, 3-element torque converter delivers higher efficiency. Higher drawbar force in 1st gear and faster speed in 2nd gear make penetration easier and material movement faster.
Cooling System
High-performance aluminum cooling package is suitable for most severe applications. Parallel oil cooler and radiator design balances heat load and supports diverse applications. Damping design reduces vibration-related failures.
Solid Structure
Validated by Cat technology FEA, Finite Element Analysis, and OMSA, On Machine Stress Analysis. Middle articulation frame requires less working space and reduces tire resistance. Large-spread hitch design in the articulation section withstands higher loads.
Serviceability
Quick pressure test ports on hydraulic and brake lines make diagnosis easier. Large wing-style hood doors make service easier, with access to the air cleaner, fuel filter and oil filter. Large-spread hitch design in the articulation section makes access easier.
Safety
Slope switch makes approaching a hopper or pile on a slope safer and easier. High-decibel beacon and backup alarm help alert people around the machine. 3-stage alarm system on the panel. 3 touch points for entering and exiting the cab improve operator safety.
Machine Applications
Landscaping, building, sewer/water works and local construction. Ready-mix cement/concrete products, quarry/stone, clay, recycled aggregate, sand and gravel. Highway, street, tunnel, airport, residential and commercial applications.
Product Specifications for 653D
- Model
- ModelSEM653D
- Main Specifications
- Rated Payload5,000 kg
- Operating Weight with Standard Bucket16,640 kg
- Bucket Capacity2.6-5.5 m³
- Operating Specifications
- Breakout Force177 kN
- Max. Drawbar Force171 kN
- Transmission
- Transmission GearsF4/R4
- Torque Converter TypeSingle Stage, 3 Elements
- Max Speed39
- Maker & TypeTR200
- Axle, Tire & Brakes
- Rear-oscillation +/-±11
- Engine
- Engine ModelWD10G220E23
- Rated Power162 kW
- Rated Speed2,000 r/min
- Displacement9.7 L
- EmissionT2 / Stage 2
- Implement Hydraulic System
- Implement System TypeOpen center
- Hydraulic Cycle Time9.3 s
- System Pressure Setting17 MPa
- Raise5.1 s
- Brake System
- Service BrakeDry & caliper, Air to Oil Control
- Parking BrakeDrum / Shoe
- Tires
- Size23.5-25
- TypePR16 Bias
Available Options for 653D
- OPTIONAL EQUIPMENT
- High Lift Arm
- U Arm
- Sand Type Tire
- GP Bucket
- Rock Bucket
- Coal Bucket
- Quick Coupler
- Pallet Fork
- Log Gripper
- Product Link
- 3 Spoon
